RediPak, SmartPak, Quantum EOT Battery Pack Chargers and Next-GenTM EOT Battery Pack Chargers

  • Nov 19, 2020

RediPak, SmartPak, Quantum EOT Battery Pack Chargers

Fully Compatible Cost Effective Chargers for Wabtec/Pulse, US&S and Quantum 12 Volt SLA Battery Packs.

Charger Features

- Battery Polarity Reversal: Protects the charger and bat- tery pack against incorrectly installed batteries.

- Over Current Protection: Protects the charger from over-current demand.

- Short Circuit Protection: Protects the charger from short-circuit damage.

- Over Voltage Protection: Protects the battery pack from damage.

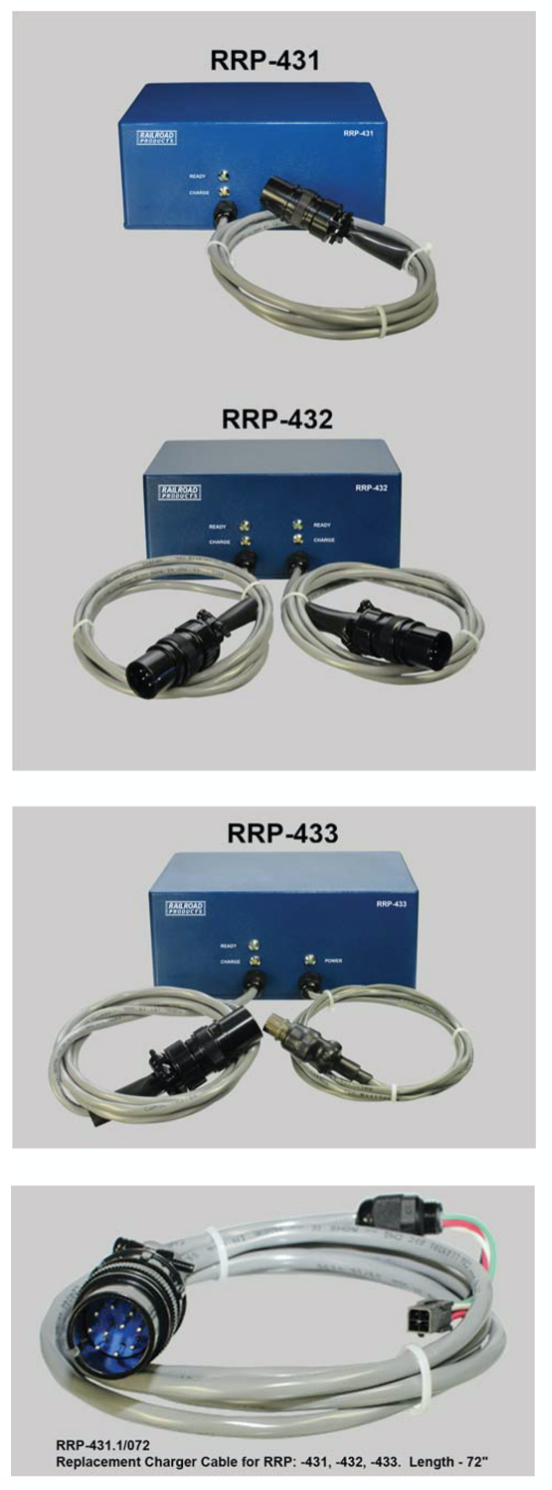

RRP-431 ...A single SmartPak, RediPak, Quantum port. RRP-432 ...Dual SmartPak, RediPak, Quantum ports.

RRP-433 ...A single SmartPak, RediPak, Quantum port plus a single NextGen battery port.



Charger Specifications

Input Voltage: 100-120VAC

Input Frequency: 47-63Hz

Output Voltage: @Fast Charge 14.4VDC Float 13.6VDC

Output Current: DC 2,000mA (Fast Charge) Battery Capacity: 5-20Ahr (recommended) Operating Temp: +32F/0C to +104F/40C Storage Temp: -4F/-20C to +140F/60C



Next-GenTM EOT
Battery Pack Chargers

Fully Compatible Cost Effective Chargers for EOT’s with 24 VDC input for onboard charging. Quantum/Siemens

3920 Smart Charging only.

Wabtec

EOT-ATX-NG EOT-ATX-NG3 and NG3T EOT-ATX-G4



Charger Features

• Battery Polarity Reversal: Protects the charger and bat- tery pack against incorrectly installed batteries.

• Over Current Protection: Protects the charger from over-current demand.

• Short Circuit Protection: Protects the charger from short-circuit damage.

• Over Voltage Protection: Protects the battery pack from damage.



RRP-441 .....Single port Next-GenTM Charger.

RRP-442 .....Dual port Next-GenTM Charger.

RRP-444 .....Four port Next-GenTM Charger.

RRP-446 .....Six port Next-GenTM Charger

RRP-448 .....Eight port Next-GenTM Charger

RRP-433 .....A single SmartPak, RediPak, Quantum port plus a single NextGen battery port.



Charger Specifications

Input Voltage: 100-120VAC

Input Frequency: 47-63Hz

Output Voltage: 24 VDC

Output Current: DC 5,000mA

Battery Capacity: 5-20Ahr (recommended) Operating Temp: +32F/0C to +104F/40C Storage Temp: -4F/-20C to +140F/60C
