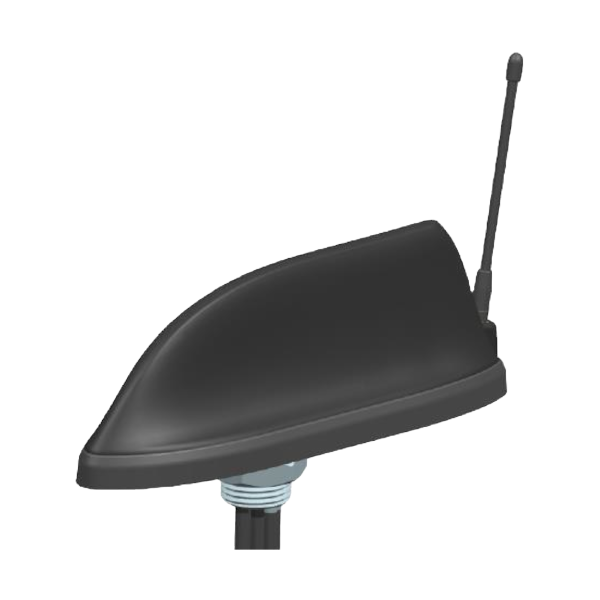

The SKF5G72311DMW from Pulse Electronics is a compact, low-profile antenna engineered for high-performance connectivity in mission-critical vehicle platforms. Designed to fit cleanly between the roof ribs of public service vehicles, the housing eliminates the need for additional sealing, gaskets, or adapters. This simplifies installation while maintaining durability.

This multi-port sharkfin solution supports seven antenna functions in one rugged enclosure:
• 2x2 MIMO 5G/LTE covering 617-5925 MHz, enabling broad
  cellular communication
• 3x3 MIMO Wi-Fi 6E/7 spanning 2.4-7.125 GHz, supporting
  high-throughput wireless networking
• Active GNSS (L1/L2/L5) with integrated 30 dB LNA for accurate,
  multi-constellation satellite positioning
• VHF, UHF, or TETRA support via a removable whip, extending
  coverage for radio and voice systems

The SKF5G72311DMW is built for demanding mobile environments. It features a UV-stable, IP67-rated housing and operates across a wide temperature range of -40 ºC to +85 ºC. Its single-stud mount (27 mm) and compact footprint make it ideal for a sleek, uncluttered vehicle installation.

To meet diverse deployment needs, the antenna is offered with customizable cable lengths and connector types, ensuring seamless integration with onboard radios, modems, and routers.

Whether installed on emergency response fleets, utility trucks, transit vehicles, or connected service vans, the SKF5G72311DMW delivers the multi-band performance needed to keep vehicles connected, aware, and mission ready.
