5925 to 7125 MHz, WiFi Sector Antenna, 17 dBi, 65-Degree, +/-45 Dual Pol, 2-port, Type N Female Connector

Home > Antennas > Base Station - Directional > 5925 to 7125 MHz, WiFi Sector Antenna, 17 dBi, 65-Degree, +/-45 Dual Pol, 2-port, Type N Female Connector
5925 to 7125 MHz, WiFi Sector Antenna, 17 dBi, 65-Degree, +/-45 Dual Pol, 2-port, Type N Female Connector

5925 to 7125 MHz, WiFi Sector Antenna, 17 dBi, 65-Degree, +/-45 Dual Pol, 2-port, Type N Female Connector

Part#: KP-6SX2-65

5925 to 7125 MHz, WiFi Sector Antenna, 17 dBi, 65-Degree, +/-45 Dual Pol, 2-port, Type N Female Connector

5925 to 7125 MHz, WiFi Sector Antenna, 17 dBi, 65-Degree, +/-45 Dual Pol, 2-port, Type N Female Connector

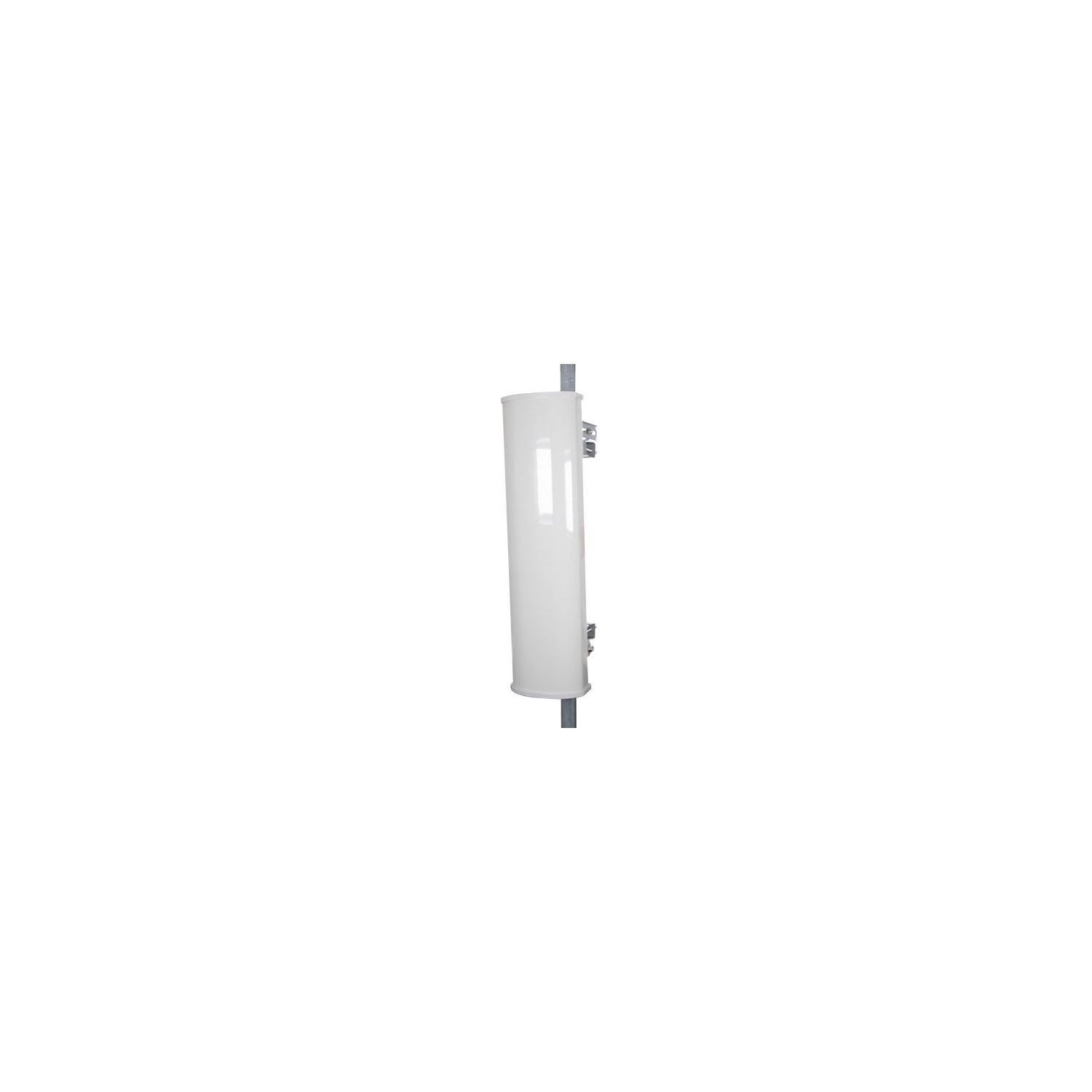

The KP Performance KP-6SX2-65 WiFi sector antenna is designed for extensive cellular communication. This antenna has a wide band frequency range from 5925-7125 MHz with a minimum front-to-back ratio of 25. It comes with a Type-N female connector with maximum input power of up to 100 watts. This sector antenna has a high gain of 17 dBi, which makes it suitable for commercial use, large enterprises, and the telecommunication industry.

Manufacturer KP Performance Antennas

    Long Description

    This KP-6SX2-65 single band antenna includes universal radio brackets, which simplifies installation. The WiFi 6e antenna with 20 dB port-to-port isolation can be used for indoor (stadiums, large arenas) and outdoor applications. It has dual slant +/-45 polarizations to improve equality in received signal levels. This unlicensed WiFi 6 frequency band antenna with 17 dBi gain is DC grounded and comes with a 4-degree electrical down tilt.

    This 5925-7125 MHz, +/-45 dual-polarized antenna comes with 2-ports. It has a 65-degree horizontal and 8-degree vertical HPBW. The sector antenna with 17 dBi gain is offered with a directional radiation pattern and has a PVC radome. This single-band antenna can operate in temperatures ranging from -40 to 60 °C.

    KP Performance has the largest in-stock selection of directional, WiFi 6e sector antennas with the same-day shipment. Make your online purchase right now to take advantage of our same-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect 5925-7125 MHz, single band antenna for your requirements.

    Features

    • Very High Gain 17 dBi Directional Antenna with MIMO peak performance
    • Uni band Frequency coverage for 5925 MHz to 7125 MHz
    • Sector antenna with 2 x Type N Female connectors
    • Supports low-latency, bandwidth-hungry applications like high-definition video and augmented reality/virtual reality applications
    • 65° beamwidth with dual +/-45 slant polarization
    • 100 W max input power per port
    • Easy Install mounting bracket provided
    • Weatherproof ABS – UV Resistance PVC radome



    Applications

    • Outdoor and Indoor Uni-band Wi-Fi 6E 5.9 GHz to 7.125GHz applications supported
    • Wireless LAN systems & IEEE.802.16ax applications with MU-MIMO and OFDMA
    • WiFi 6 and WiFi 6E enables higher datarates upto 35% with enhanced efficiency and speed
    • Increased Bandwidth enhances spectral efficieny and supports faster radio applications
    • Smart cities expansion for coverage and IOT / IIOT
    • Point-to-point (PtP) or point-to-multipoint (PtMP) applications

    Specifications

    Beamwidth 8° Vertical | 65° Horizontal
    By KP Performance Antennas
    Frequency Range 5925 MHz - 7125 MHz
    Frequency Bands 5925 MHz - 7125 MHz
    Polarization +/-45 Dual
    Gain 17 dBi
    Connector Type Type N Female
    KP-6SX2-65_datasheets_US.pdf
