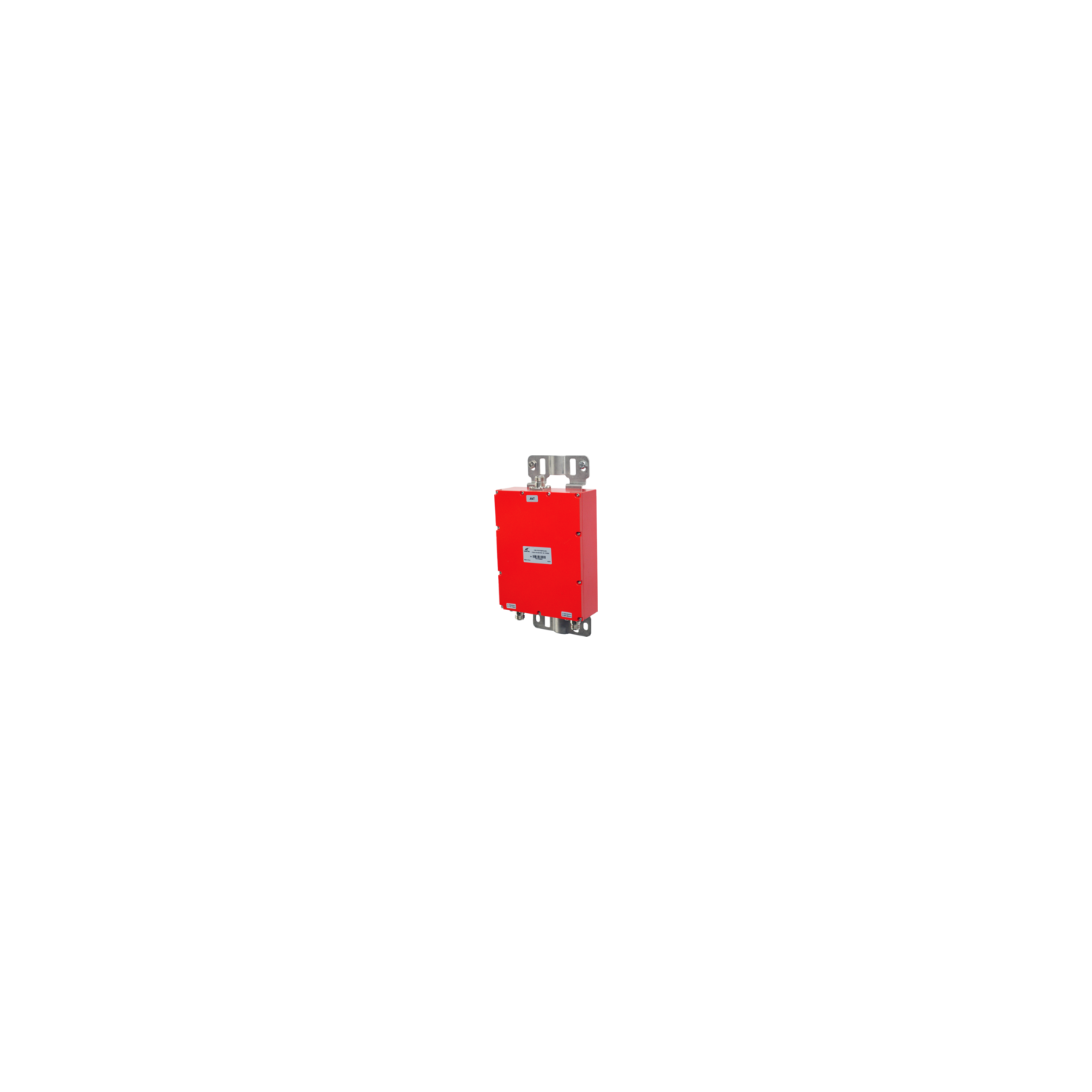

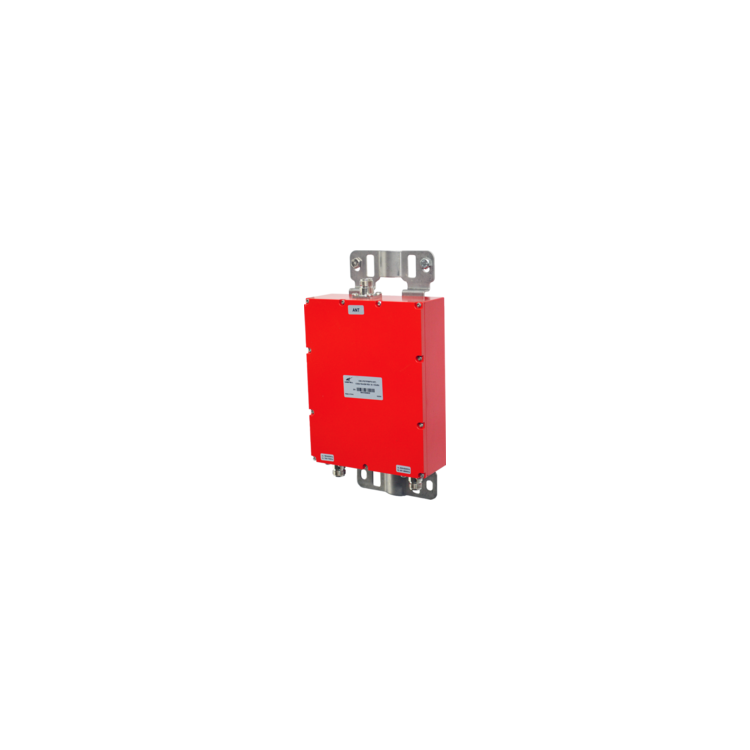

Westell Cross Band Coupler | Public Safety 700 & 800 MHz
Westell Cross Band Couplers provide for the combining of multiple frequency bands on shared cables and multi-band antennas or the splitting of 2 frequency bands to inject into a DAS head-end. This cross band coupler separates and joins the 700Mhz public safety band (including FirstNet) with the 800Mhz pubic safety band. Product Highlights • VSWR ≤1.43:1 • IP67 rated to withstand a direct water spray • Power Rating 50 Watts Avg. Frequency Range • Port 1: UL 788-805/DL 758-775 MHz (FirstNet) • Port 2: UL 806-824/DL 851-869 MHz
