Westell’s PS51080E and PS71090E BDAs are enhanced versions of
the industry favorite PS series with several new features including
built-in battery charger, all required NFPA 2019 alarms, built-in
annunciator panel, improved cable feed-through options, uplink
squelch, and an NRTL listing to ANSI/UL 2524, the latest standard
for ERCES systems.
The integrated BBU greatly simplifies installation and reduces
installed costs. Order BBC-03 separately to house batteries.

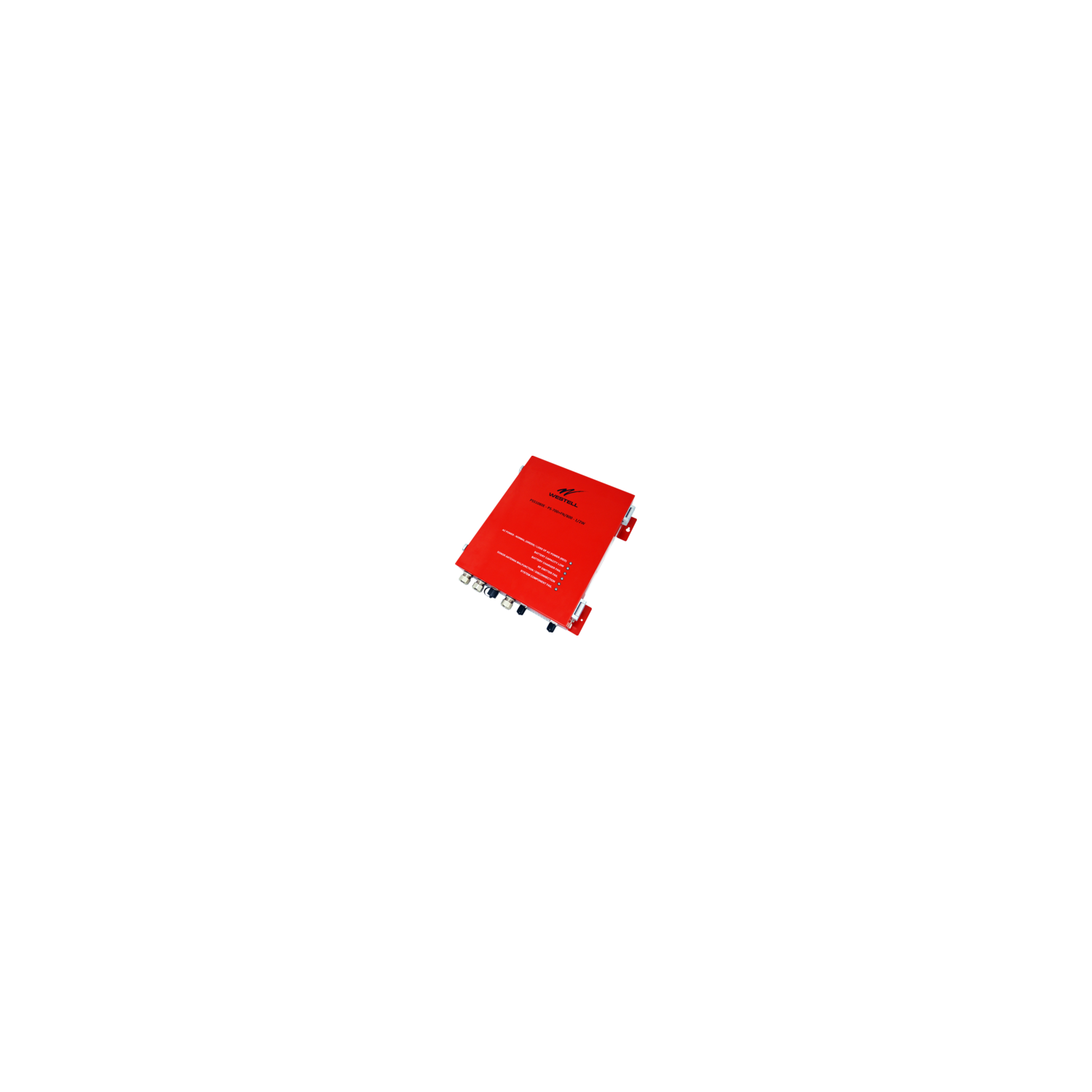

The PS enhanced series BDAs are NFPA 72/1221 compliant with red
NEMA Type 4 enclosure, independent control per band, up to 90dB
of gain and 2 watts RF output.
Frequency Range
• Uplink 788-805 / 806-809 / 806-816 / 806-824 MHz
• Downlink 758-775 / 851-854 / 851-861 / 851-869 MHz
Product Highlights
• Supports dual‐dand 700/800 MHz
• NFPA 72/1221 compliant Class B amplifier
• 27 dBm, (1/2W) & 33 dBm (2W) power output DL/UL
• 80 dB or 90 dB gain
• NRTL listings: ANSI/UL 2524, UL 62368-1, UL 508A
• Built-in battery charging and alarm circuitry
• Redundant power supplies, operates on 110VAC or 24VDC
• Built-in annunciator
• Uplink squelch
• FirstNet ready
• Low power consumption
• Passband options - Can be turned on/off independently
• UL 788-805 / DL 758-775 MHz (17 MHz)
• UL 806-809 / DL 851-854 MHz (3 MHz)
• UL 806-816 / DL 851-861 MHz (10 MHz)
• UL 806-824 / DL 851-869 MHz (18 MHz) (2 Watt unit only)
• Independent power and gain control per band
• Sharp SAW filtering reduces interference from adjacent RF signals
• Easy to install and maintain
• Dry contacts for fire panel connection
• Terminal block to support EOL resistors
• NEMA Type 4 3/4” conduit glands for AC, battery & alarms
• Intelligent oscillation management and self-healing
• Shutdown in the event of non-correctable conditions
• VSWR antenna monitoring
• Supports both digital and analog modulation including P25 phase 1 & 2
• Supports SNMP
