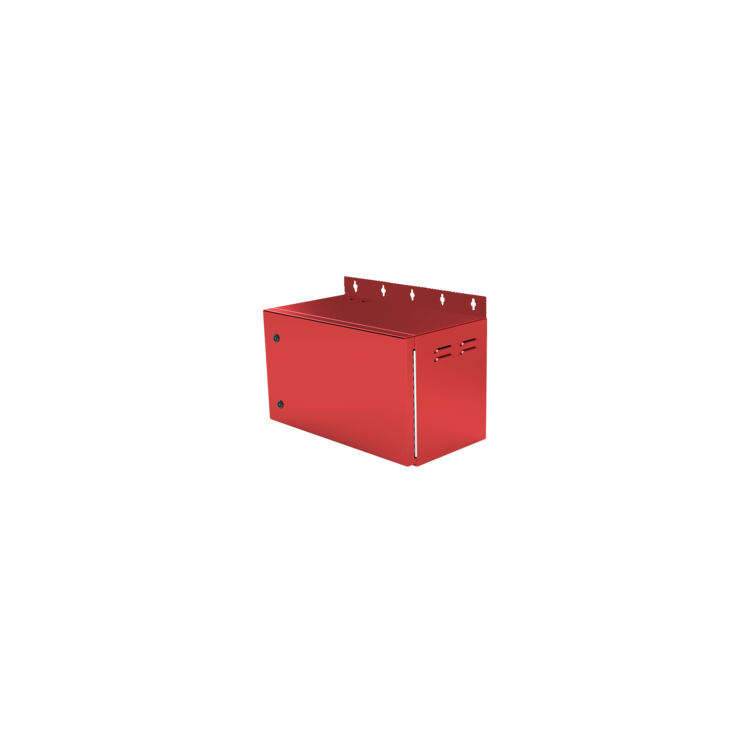

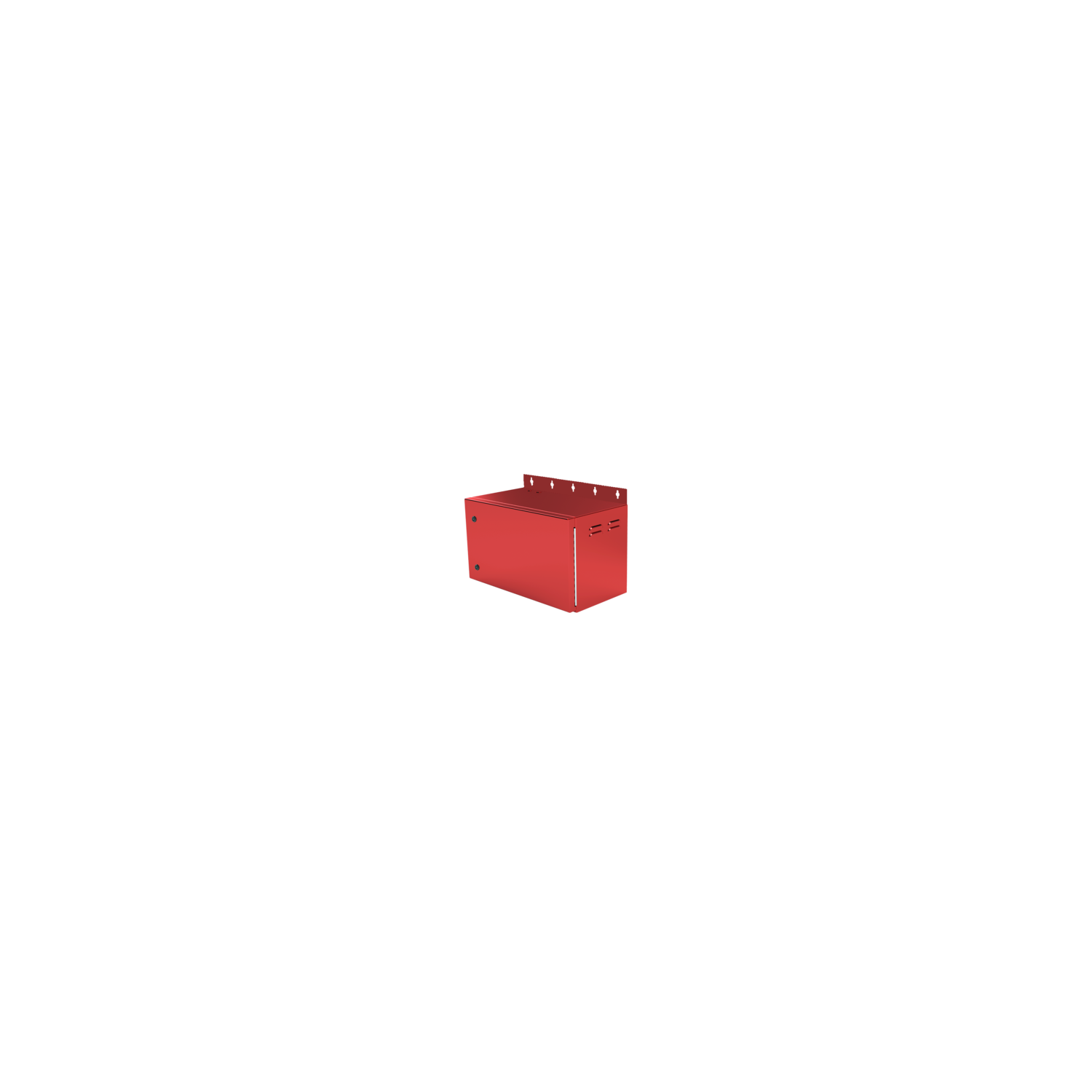

Westell’s CS19-BBC-003 is a compact size battery cabinet designed
for use in Public Safety applications to house up to two 160AH of
battery capacity in a red, wall mountable, NEMA3R cabinet.
The battery cabinet comes complete with everything needed
for installation including conduit fittings, wire, and terminals.
Short circuit protection is provided by a circuit breaker inside the
cabinet which also provides a convenient way to test for charger
fail alarm.
Product Highlights
• Supports up to 24 hour of backup runtime for Westell
ProtectLink™ and PS Enhanced Series Class B BDAs
• Sized to support up to two 160AH batteries (CS19-PYL12V160FT
batteries recommended). Batteries are not included.
• DIN rail mounted DC breaker
• UL2524 compliant
• NFPA 1221 compliant
• NEMA-3R rated enclosure
• Wall mount
• Light-weight welded, aluminum, red powder-coated construction
Applications
• Battery back-up enclosure for Westell:
• ProtectLink™:
• Class A and Class B BDAs, CS40-Series
• Optical Remote Units, CS40-734834-00D-BR
and CS40-734834-00D-AR
• Optical Master and Radio Module, CS40-OPTMASTER and
CS40- OPTMRADIOMOD
• PS Enhanced:
• Class B BDAs, CS14-720-820 and CS14-722-822
• Can also be used to house batteries for any other BDA requiring
24VDC back-up.
Included Accessories
• 15A single pole DIN rail
mount DC breaker (mounted
to internal DIN rail)
• 72” 14 AWG stranded black
and red wire for battery
connection (installed on the
DIN rail DC breaker)
• 14” 14 AWG stranded yellow
wire (for serial connection of
batteries)
• (4) 18-14 AWG terminal rings
• (1) ¾” liquid tight cord grip
• (1) ½” NPT cord grip
• (6) Hex bolt ¼ 20 x 1 stainless
steel mounting hardware with
washers
