Westell® | Universal Remote Annunciator NFPA Public Safety Remote Annunciator

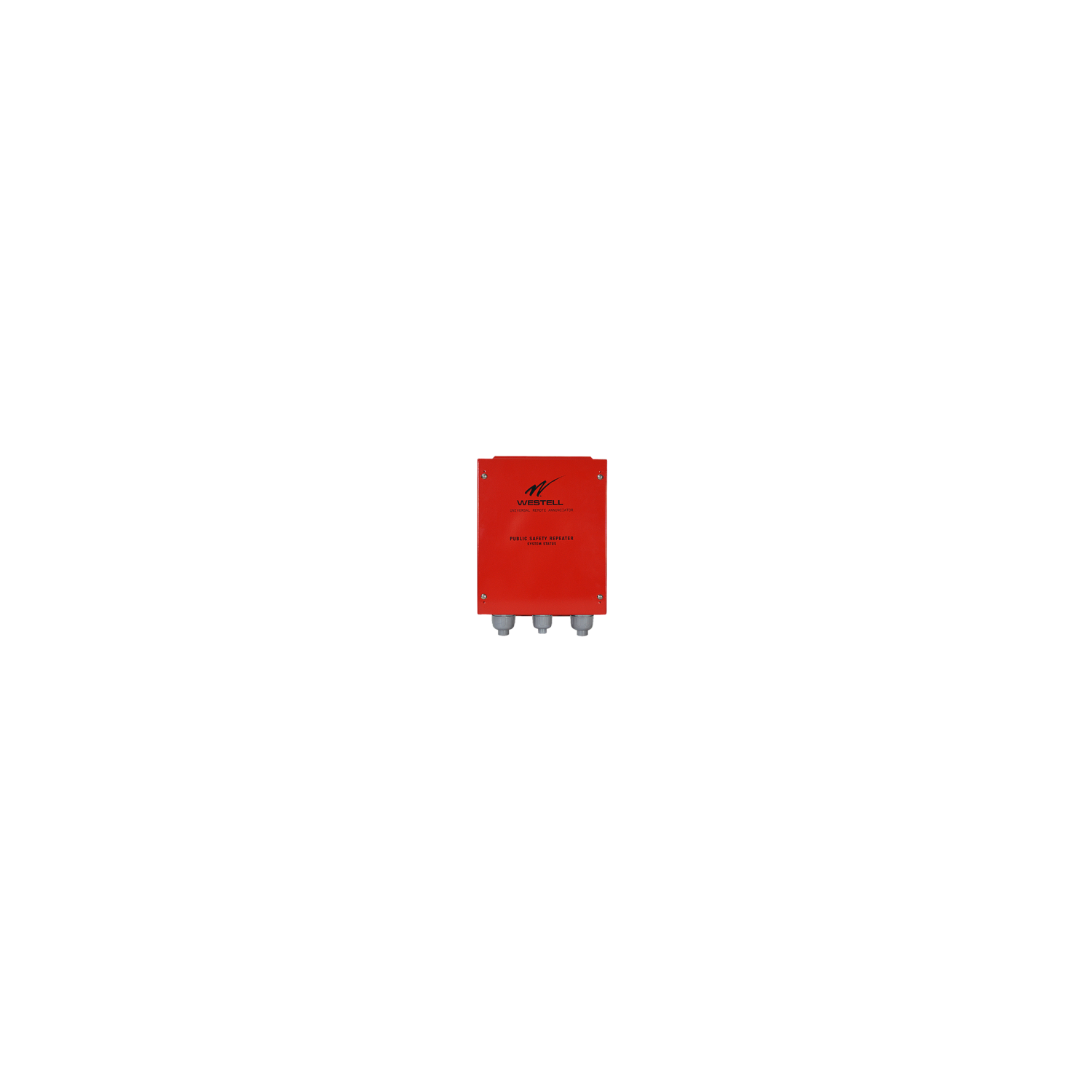

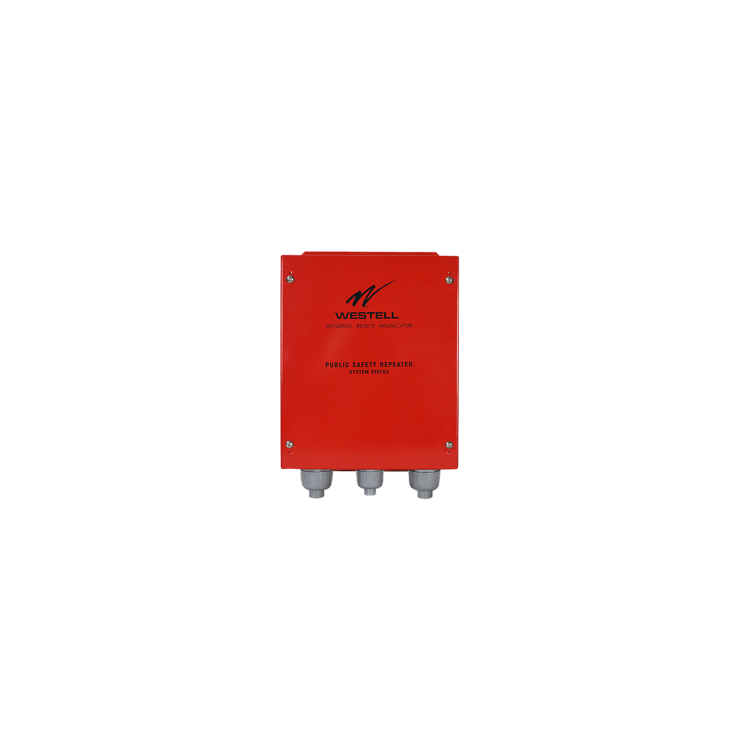

The Westell Universal Remote Annunciator (URA) is a compact, easy to install Remote Annunciator for ERCES installations that will operate with any manufacturer���s BDA/ BBU system. The URA consists of a small NEMA 4 Interface Unit (IU) that mounts next to the BDA plus a compact Remote Annunciator (RA) that can be mounted up to 3000 feet away and connected with a single CAT5/6 cable. Connections to the fire alarm panel pass through the Interface Unit to allow easy connection between the BDA and the FACP. The Interface Unit can support up 2 Remote Annunciators. Order the CS40-ANNUNC if a location for a 2nd Remote Annunciator is required. The Remote Annunciator fits on the front of a 2 gang electrical box for an attractive, nearly flush installation and provides an audible alarm plus a lamp test button.
Product Highlights • Works with any BDA/BBU with relay closures • Compact, attractive form-factor • Audible alert on the RA • Audible function can be disabled • Powered by 24 to 48VDC from BBU • Monitors for circuit faults between IU and RA • Supports up to 8 input alarms • Provides 7 NO and NC output relays • IU includes summary alarm contact • Up to 3000 ft distance between IU and RA • NEMA 4 conduit fittings included on IU • Diagnostic indicators on IU
