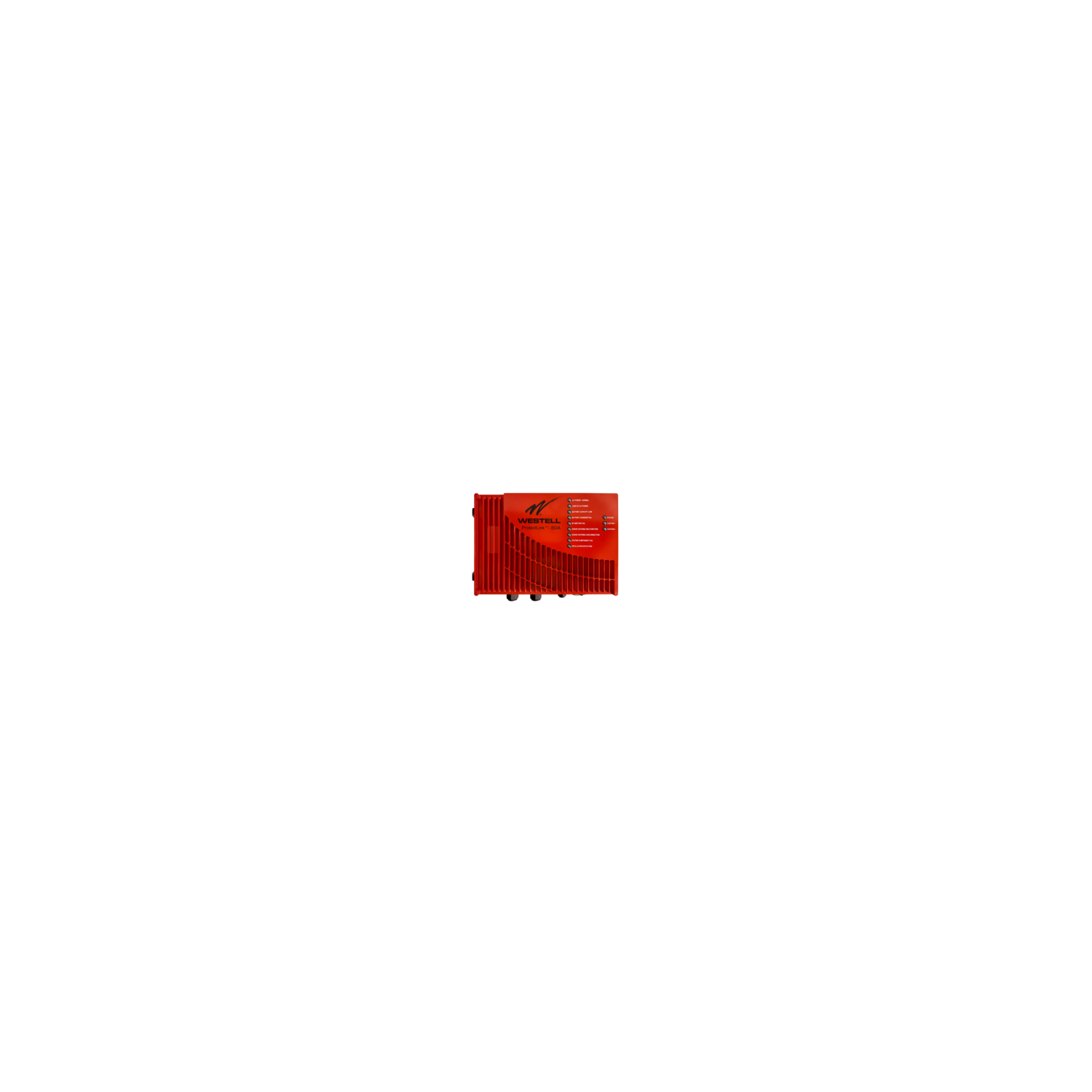

The Westell ProtectLink Public Safety Next Generation
1/2W BDA has one of the smallest form factors available on
the market. The Class A or Class B BDA includes 700/800
MHz dual-band support, 1/2W output power, and additional
auxillary alarms. Westell’s ProtectLink public safety BDA are
an integral part of any NFPA complaint ERCES (Emergency
Responder Communication Enhancement System).
ProtectLink includes a full-featured, easy to use web GUI.
The product also includes adjustable bandwidth filters,
intelligent oscillation management, built-in isolation test,
NFPA/UL2524 alarm capabilities, built-in annunciator with
an optional remote annunciator panel. The BDA supports
64 total enabled channels allocated across bands in blocks
of 8. Individual filter bandwidths of 12.5 kHz or 75 kHz are
available for class A operation. Class B filters support 150
kHz or up to full bandwidth.
Frequency Range
• Uplink: 799-806 MHz, 806-824 MHz
• Downlink: 769-776 MHz, 851-869 MHz
Product Highlights
• Class B and Class A operation
• 1/2W downlink
RF power per band
• Intelligent oscillation
management, self-healing
• 90 dB downlink gain,
80 dB uplink
• Built in front panel
annunciator with additional
custom LED’s
• Built-in remote annunciator
communications link
• Emergency Transmit Disable
• Supports SNMP
• Fast uplink squelch response
per filter
• Independent gain control
per filter
• Compact footprint
• NEMA4 conduit
glands included
• Supports both digital and
analog modulation
• Supports P25 phase 1 & 2
• P25 phase 2 AGC (Automatic
Gain Control) per time slot to
address near/far users on the
same channel
• 3-year warranty
• PSERN June 1 2025
compliant*
Product Certification
• UL-2524: In-building 2-Way
Emergency Responder
Communication Enhancement
System (ERCES)
• NEMA 4 enclosure
• NFPA 1221 and NFPA 1225
• FCC ID: CH8727827
