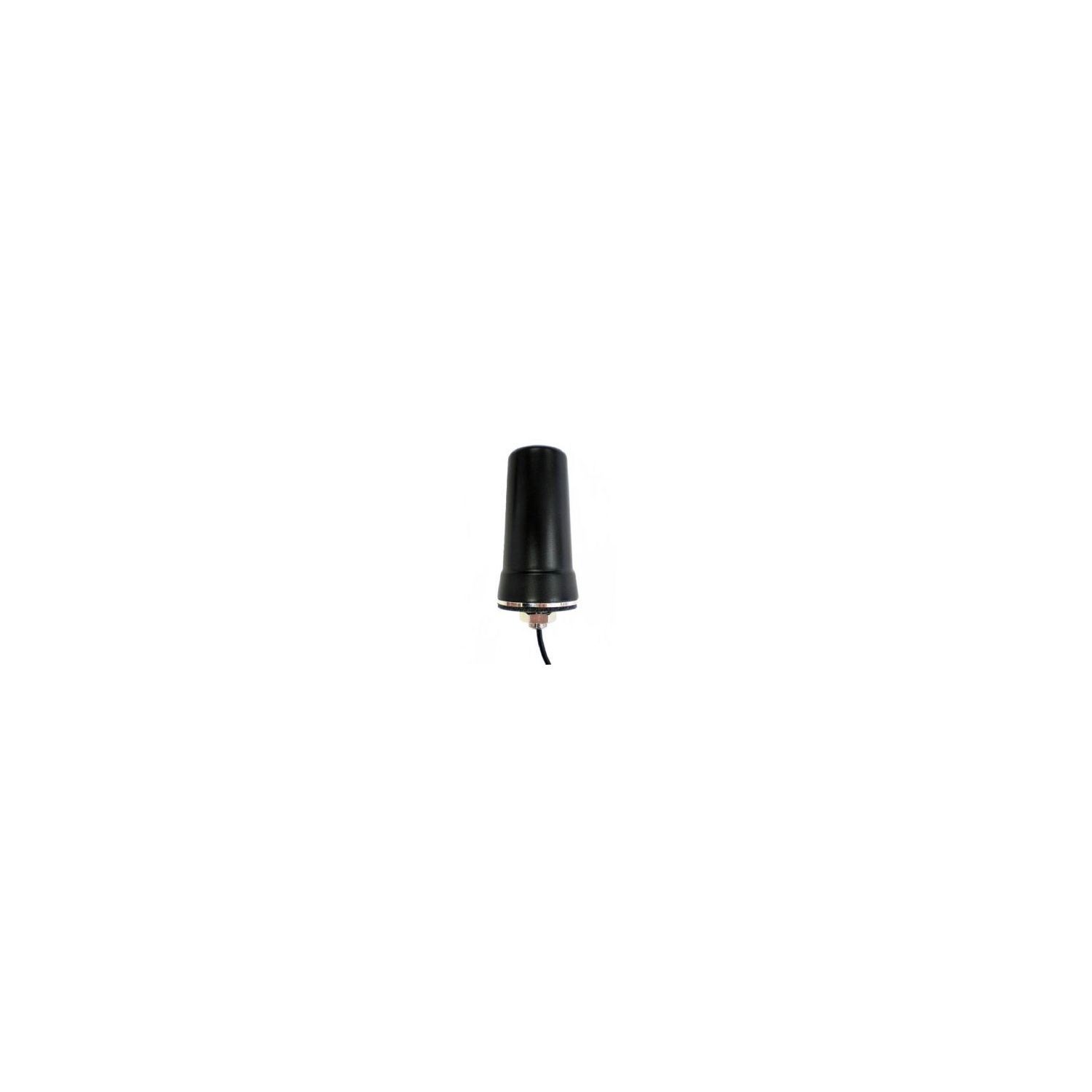

EM-A20004-SP - Fixed station BB/multiband 698-960 & 1710-2700 MHz, 24" RG174/U LL cable, SMA plug, (White)

Home > Antennas > Mobile > EM-A20004-SP
EM-A20004-SP

EM-A20004-SP

Part#: EM-A20004-SP

EM-A20004-SP

EM-A20004-SP
Fixed station BB/multiband 698-960 & 1710-2700 MHz, 24" RG174/U LL cable, SMA plug, (White)
Manufacturer EMWAVE, INC.

    Long Description

    •LTE/4G Performance
    •Bulkhead Mount Applications
    •Aesthetic/Tamper Resistant design
    •Low-Profile to minimize visual impact
    •UV Stabilized, High Impact ASA / Polycarbonate housing
    •O-ring seal for reliable waterproof construction and installation



    Specifications

    Antenna Type Mobile
    Weight 1 lb.
    By EMWAVE, INC.
    Power Rating 10 W
    Frequency Range 698-960 MHz / 1710-2700 MHz
    Frequency Bands 3
    Diameter 1.67 in
    Application LTE Broadband/Multiband
    VSWR <2.2:1
    Polarization Linear, Vertical
    Gain 2-3.5 dBi
    Mounting Pipe Diameter 3/8”
    Cable Type Low Loss 100
    Connector Type SMA Plug
    Operating Frequency Band 698-960 MHz / 2 dBi Gain | 1710-2200 MHz / 2 dBi Gain | 2200-2700 MHz / 3.5 dBi Gain
    Radome Material PCB
    Material ASA / Polycarbonate
    Height 3 in
    EM-A20003-SP & EM-A20004-SP-SDS_10.24.2024.pdf
