e/m-Flex™ EMFLX-M10011-GPI Ground Plane Independent 5dBi Antenna 450-470 MHz

Home > Antennas > Base Station > EMFLX-M10011-GPI
EMFLX-M10011-GPI

EMFLX-M10011-GPI

Part#: EMFLX-M10011-GPI

EMFLX-M10011-GPI

EMFLX-M10011-GPI

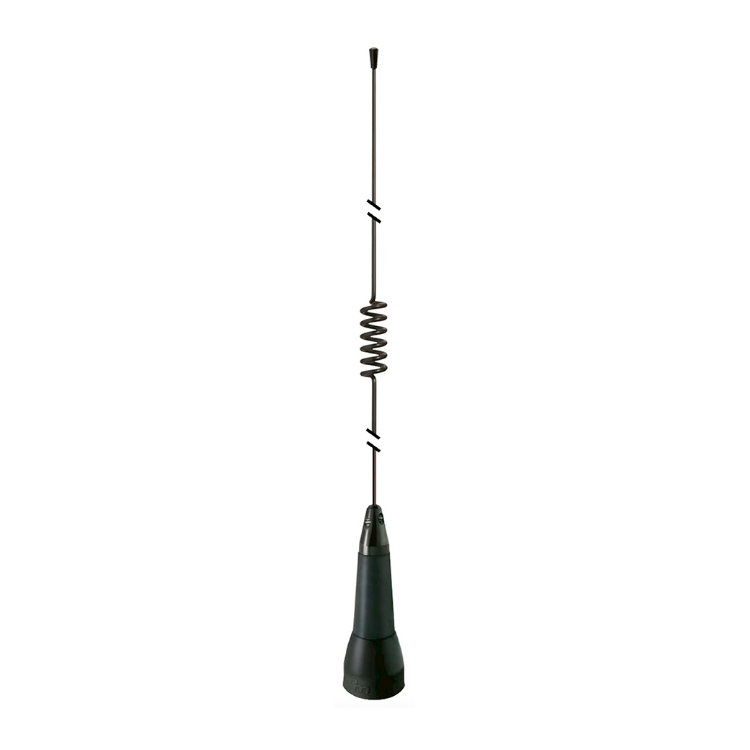

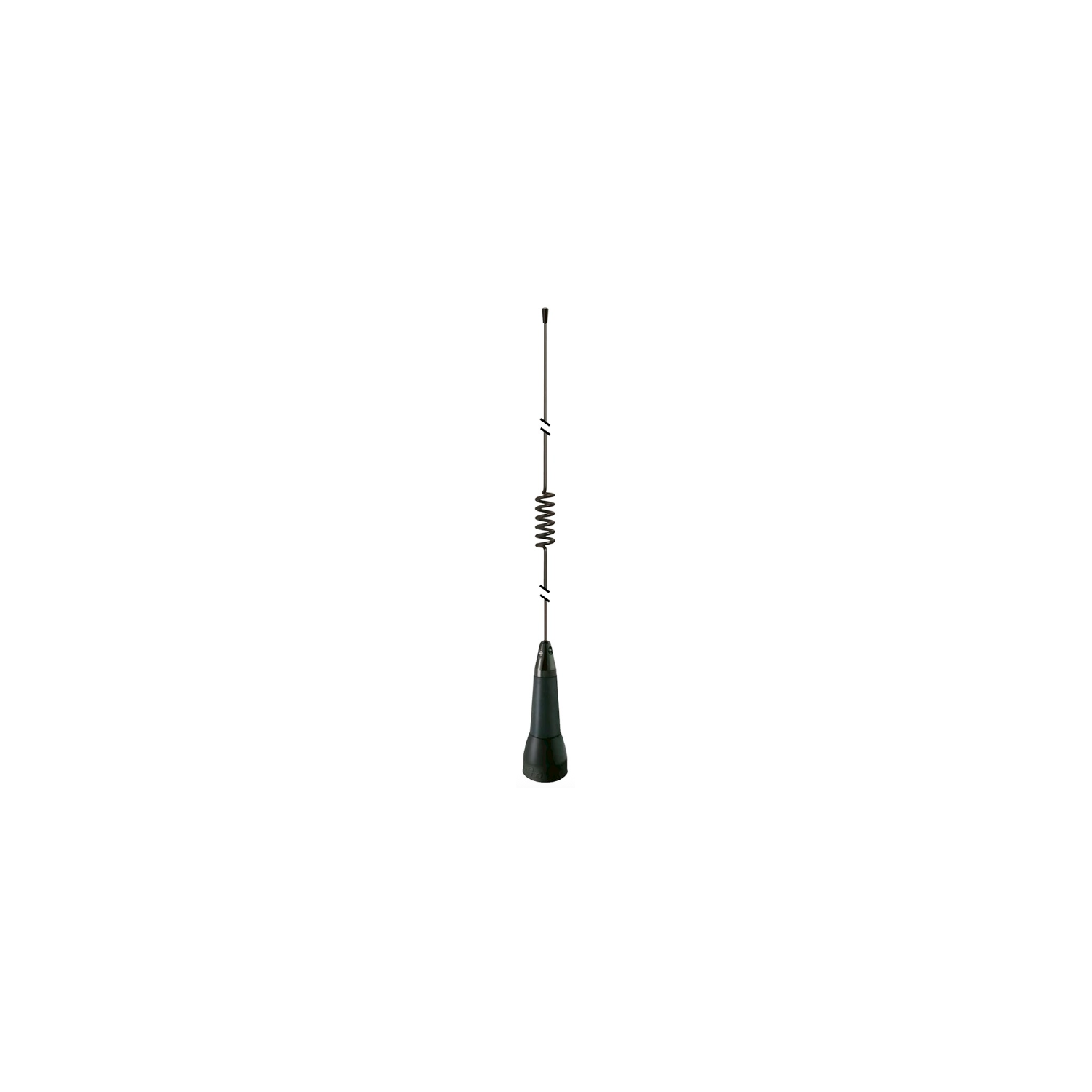

e/m-Flex™ EMFLX-M10011-GPI Ground Plane Independent 5dBi Antenna 450-470 MHz

Manufacturer EMWAVE, INC.

    Long Description

    • Factory Tuned and Optimized for both Ground Plane and Ground Plane Independent Installations, No Tuning Required
    • One-piece 17-7 SS Open Coil Whip for Reliability & Performance
    • Flexible/Durable Black Poly Spring
    • Impact Resistant ASA Base w/ TPU Grip Ring & Dust Seal
    • O-ring Seals for Waterproof Construction

    Specifications

    Antenna Type Whip
    Weight 2 lb.
    By EMWAVE, INC.
    Power Rating 150 W
    Finish Black Chrome
    VSWR <2:1
    Polarization Linear, Vertical
    Gain 5 dBi
    Mounting Pipe Diameter ¾ inch Thru-Hole NMO Mount
    Connector Type NMO Cable Assembly and Connector Sold Separately
    Operating Frequency Band 450-470 MHz (Factory Tuned)
    Material Base: ASA w/TPU Over Mold Grip | Spring: Black Molded Polymer Alloy | Whip: 17-7 SS, Black Chrome
    Length 34 in. (863mm)
    EMFLX-M10011-GPI.pdf
