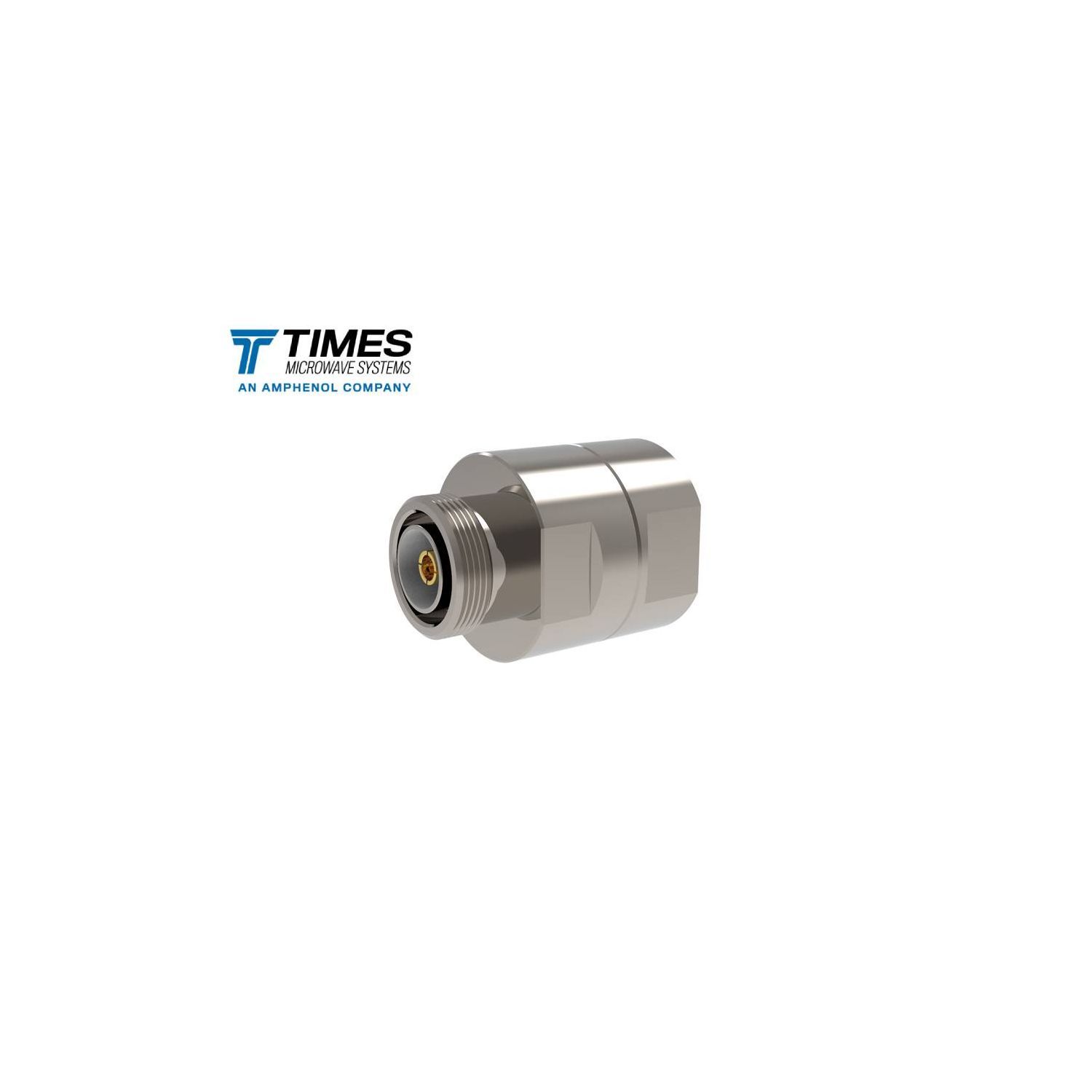

7/16 DIN female (jack), straight EZ connector for LMR®-1200 type cables.
The EZ-1200-716FC-2 eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination. The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high-vibration applications where the center conductor might contract. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication systems.
