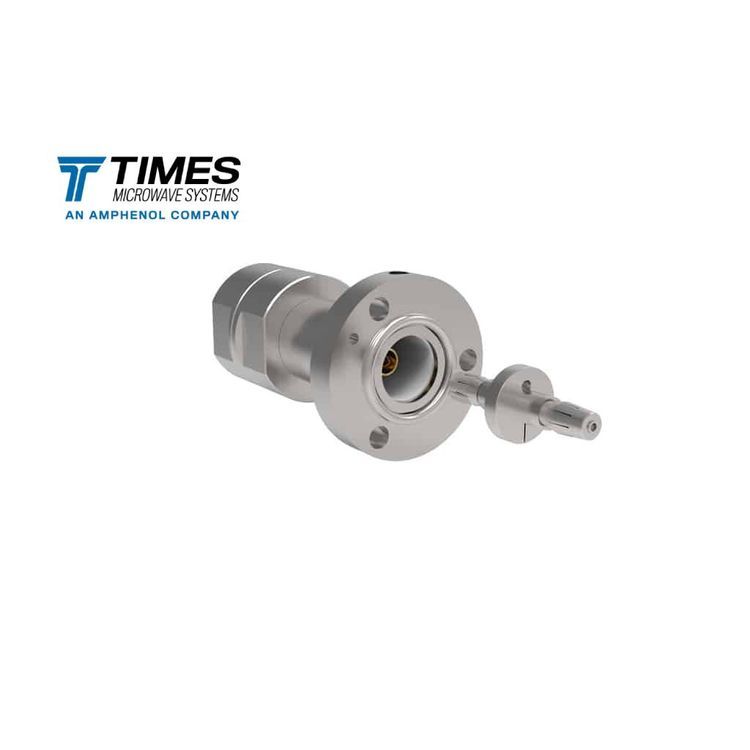

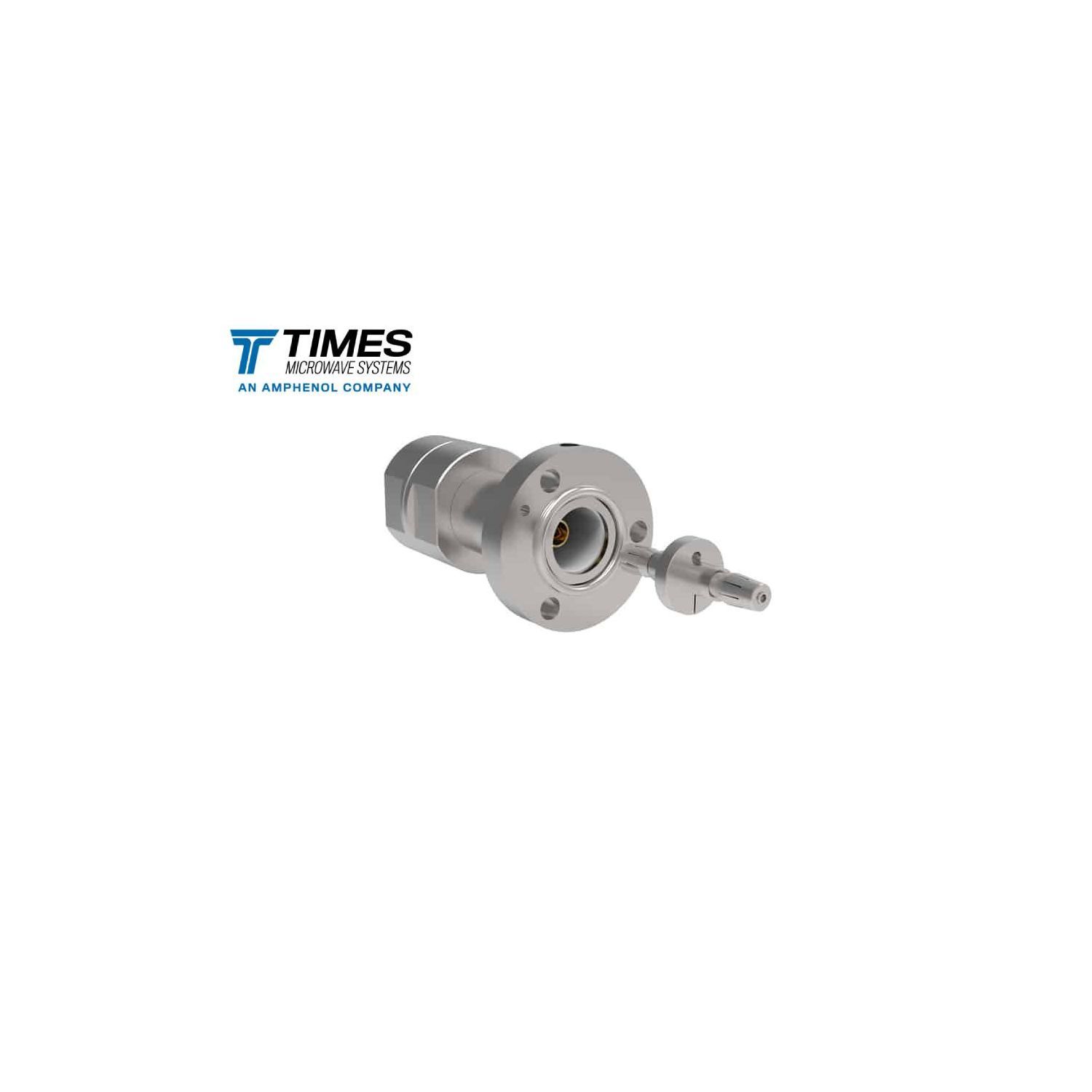

7/8 EIA Flange straight EZ connector for LMR®-1200 type cables. The EZ-1200-78EIA-2 eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts.
It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination. The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high-vibration applications where the center conductor might contract. The 7/8 EIA connectors are typically used to connect high-power RFl transmission lines. This is a straight connector for 1200 size cables.
