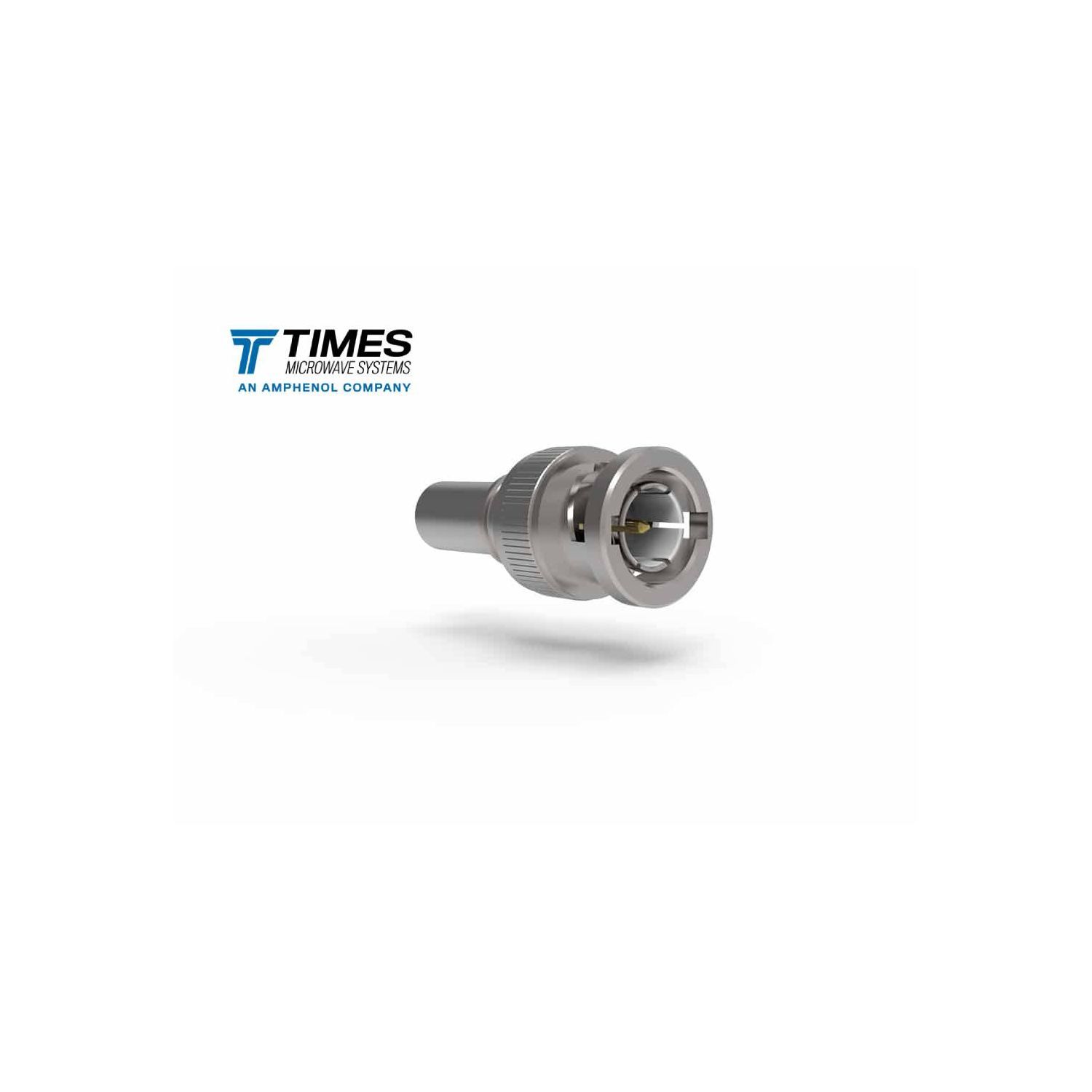

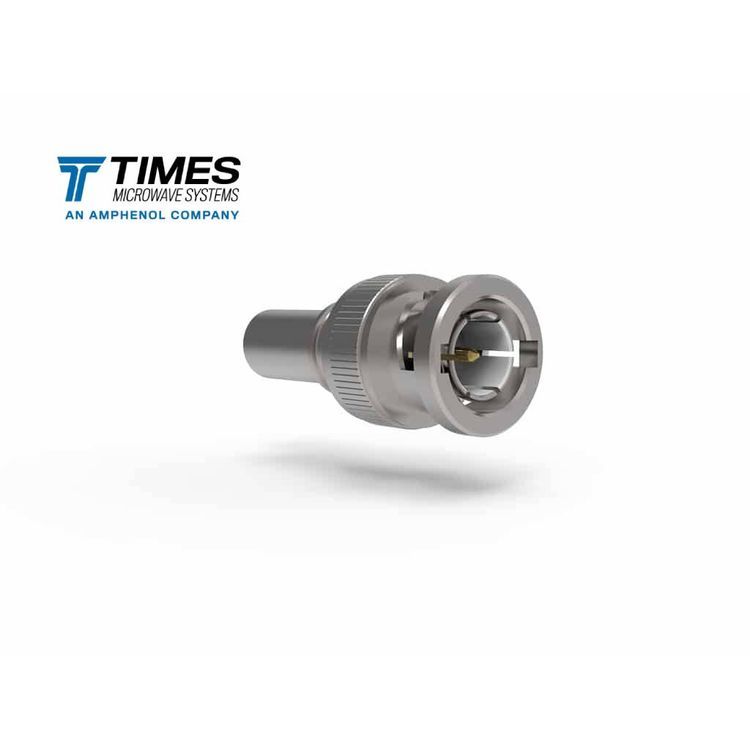

EZ-240-BM-75-X - BNC Male (plug)

Part#: EZ-240-BM-75-X

EZ-240-BM-75-X - BNC Male (plug)

EZ-240-BM-75-X - BNC Male (plug)

Type BNC, male (plug), straight, EZ style connector for LMR®-240-75 type cables.

Manufacturer TIMES MICROWAVE

    The EZ-240-BM-75-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination.  The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high- vibration applications where the center conductor might contract. BNC connectors are a classic, dependable design, suited to accommodate a large variety of RG and industry-standard coaxial cables, in a variety of termination styles. Its bayonet-style coupling mechanism enables quick-connect and disconnect with positive locking. Mating is achieved with just a quarter-turn of the coupling nut.

    Specifications

    OuterContactAttach Clamp
    Interface BNC
    MaxFrequency 2 (GHz)
    Weight 0.03 lb.
    Manufacturer TIMES MICROWAVE
    Impedance 75
    CouplingNut Knurl
    Finish Body Finish -Alballoy Pin Finish-Gold
    Angle Straight
    VSWR VSWR Freq <1.25:1 VSWR Frequency (GHz) 2
    ConnectorType BNC Male (plug)
    Length 1.2 in
    Width 0.57 in
