EZ-240-NMH-75-X - N Male (plug)

Part#: EZ-240-NMH-75-X

EZ-240-NMH-75-X - N Male (plug)

EZ-240-NMH-75-X - N Male (plug)

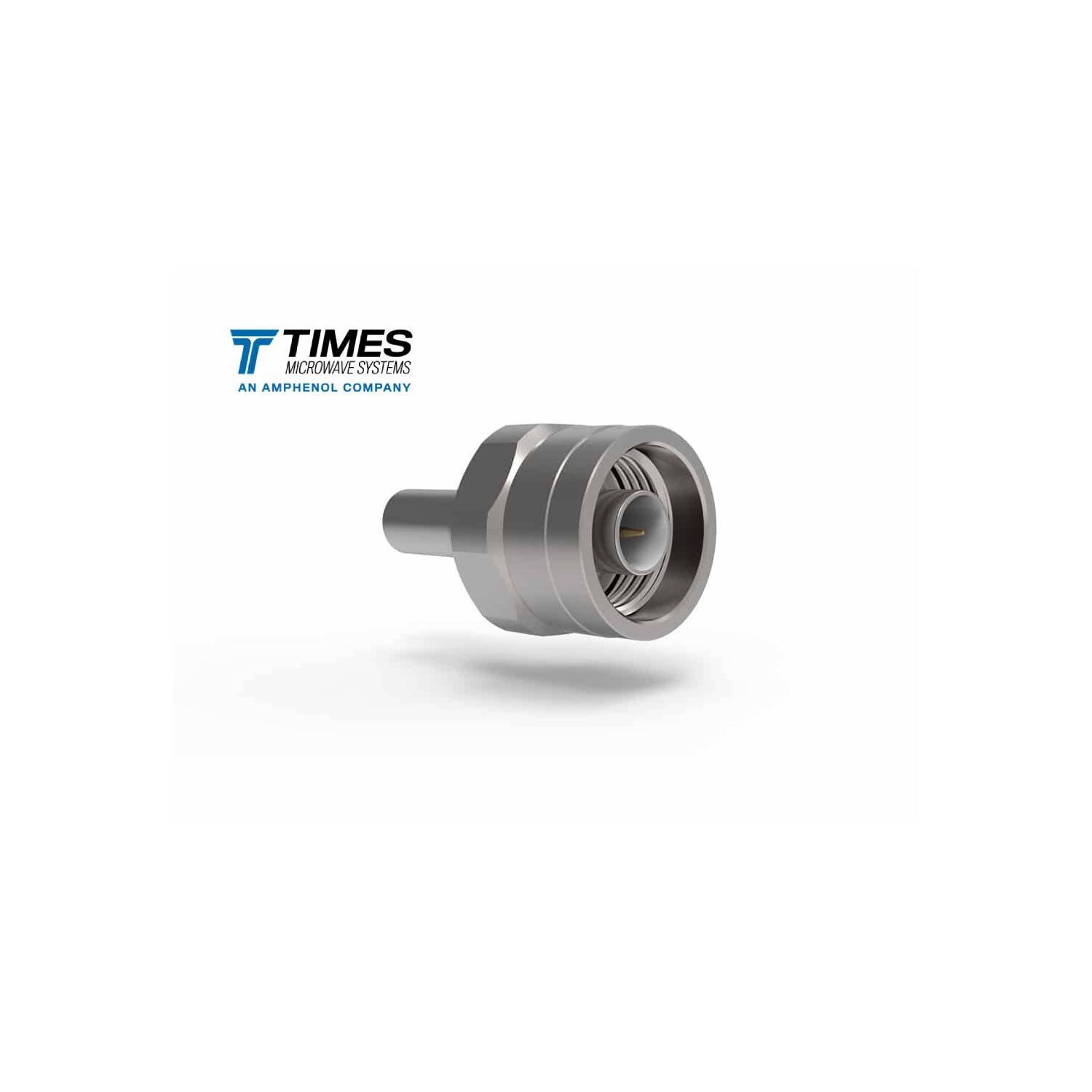

Type N, male (plug), straight, EZ style connector for LMR®-240-75 type cables.

Manufacturer TIMES MICROWAVE

     The EZ-240-NMH-75-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination.  The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high- vibration applications where the center conductor might contract. The Type N is a durable, weatherproof, medium-size RF connector designed for systems where excellent RF and mechanical performance is critical. They feature a threaded coupling mechanism and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification.

    Specifications

    OuterContactAttach Crimp
    Interface N
    MaxFrequency 2.5 (GHz)
    Weight 0.08 lb.
    Manufacturer TIMES MICROWAVE
    InnerContactAttach Spring Finger
    Impedance 75
    CouplingNut Hex/Knurl
    Finish Body Finish Alballoy - Pin Finish Gold
    Angle Straight
    VSWR VSWR Freq<1.30:1 - VSWR Frequency (GHz) 2.5
    ConnectorType Male (plug)
    Length 1.44 in
    Width .87 in
