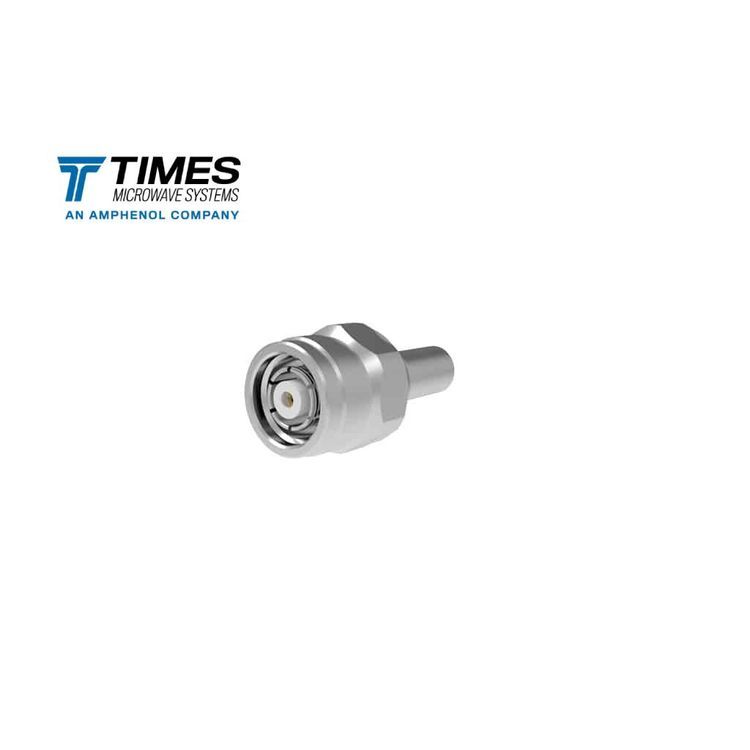

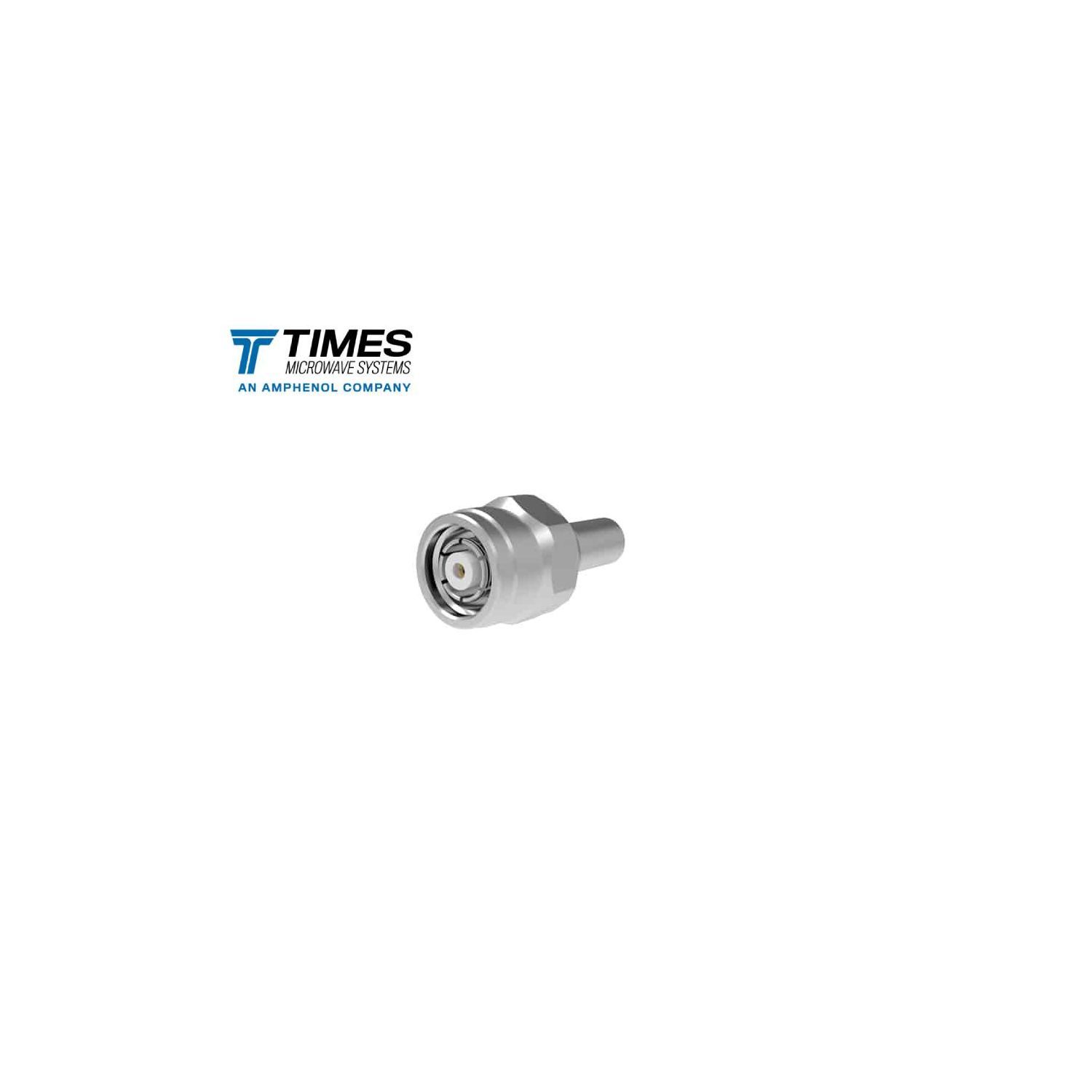

EZ-240-TM-RP-PL-X - TNC-male (plug)

Part#: EZ-240-TM-RP-PL-X

EZ-240-TM-RP-PL-X - TNC-male (plug)

EZ-240-TM-RP-PL-X - TNC-male (plug)

Type TNC, male (plug), straight, EZ style connector for FBT-240 and LMR®-240-LLPX® type cables

Manufacturer TIMES MICROWAVE

    The EZ-240-TM-RP-PL-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination.  The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high- vibration applications where the center conductor might contract. The TNC is a miniature, threaded, weatherproof connector with a contact design similar to a BNC series and a higher frequency performance.

    Specifications

    OuterContactAttach Crimp
    Interface TNC
    MaxFrequency 6 (GHz)
    Weight 0.06 lb.
    Manufacturer TIMES MICROWAVE
    InnerContactAttach Spring Finger
    Impedance 50
    CouplingNut Hex/Knurl
    Finish Body Finish Alballoy - Pin Finish Gold
    Angle Straight
    VSWR VSWR Freq <1.30:1 VSWR Frequency (GHz) 6
    ConnectorType Male (plug)
    Length 1.34 in
    Width .68 in
