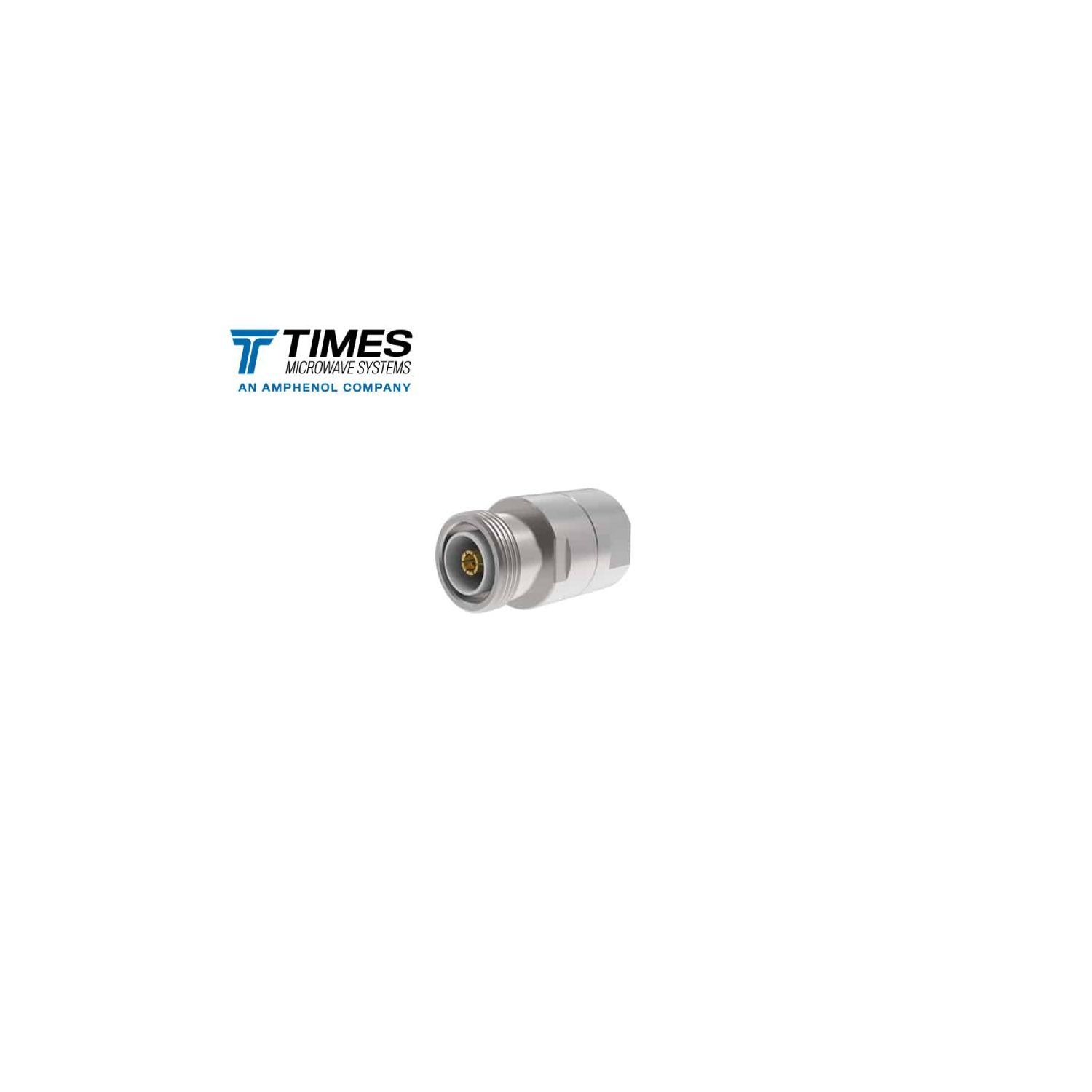

EZ-900-716FC-2-SP - 7/16 DIN female

Part#: EZ-900-716FC-2-SP

EZ-900-716FC-2-SP - 7/16 DIN female

EZ-900-716FC-2-SP - 7/16 DIN female

Type 7/16 DIN, female (jack), straight, EZ style connector for HP-900, LMR®-900, SFT-900, and T-RAD®-900 type cables.

Manufacturer TIMES MICROWAVE

    The EZ-900-716FC-2-SP eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination. The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high- vibration applications where the center conductor might contract. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication

    Specifications

    OuterContactAttach Clamp
    Interface 7/16 DIN
    MaxFrequency 6 (GHz)
    Weight 0.66 lb.
    Manufacturer TIMES MICROWAVE
    InnerContactAttach Press Fit
    Impedance 50
    Finish Body Finish Alballoy - Pin Finish Silver
    Angle Straight
    VSWR VSWR Freq <1.30:1 - VSWR Frequency (GHz) 6
    ConnectorType Female (jack)
    Length 2.28 in
    Width 1.36 in
