HX6-611-6WH/B

HX6-611-6WH/B

Part#: HX6-611-6WH/B

HX6-611-6WH/B

HX6-611-6WH/B

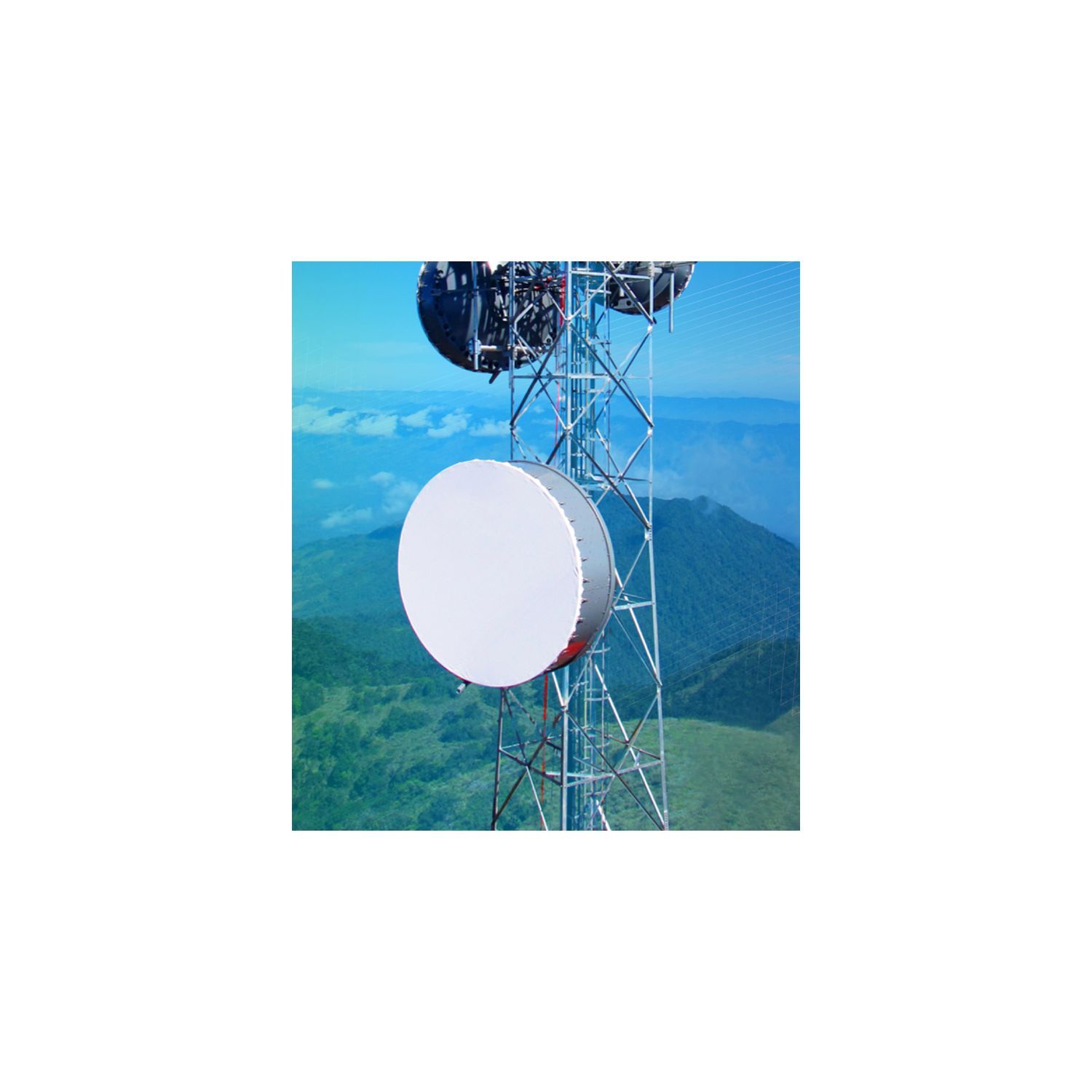

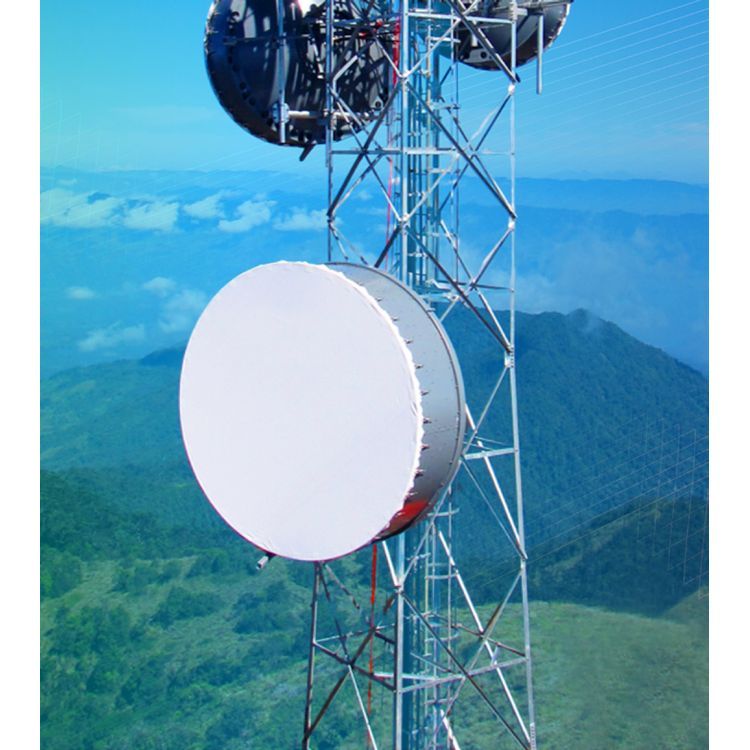

1.8m | 6ft ValuLine® High Performance, High XPD Antenna, dual-band,
dual-polarized, 5.925 – 7.125 GHz & 10.0 -11.7GHz

Manufacturer Andrew an Amphenol company

    1.8m | 6ft ValuLine® High Performance, High XPD Antenna, dual-band,
    dual-polarized, 5.925 – 7.125 GHz & 10.0 -11.7GHz

    Specifications

    Beamwidth 1 - 1.8 ° depending on band
    AntennaType HX - ValuLine® High Performanc
    Input CPR137G | CPR90G
    Weight 198.416 lb.
    Manufacturer Andrew an Amphenol company
    FrequencyRange 5.925 – 7.125 GHz / 10.000 – 11.700 GHz
    FrequencyBands 2
    ReturnLoss 20 dB
    Diameter 1.8 m | 6 ft
    VSWR 1.22
    WindRating 200 km/h | 124.274 mph
    Polarization Dual
    Gain 38-44 dBi
    Includes Side Struts - 1
    MountingPipeDiameter 115 mm–120 mm | 4.5 in–4.7 in
    OperatingFrequencyBand 5.925 – 7.125 GHz / 10.000 – 11.700 GHz
    RadomeMaterial Fabric
    hx6-611-6wh-b-product-specifications.pdf
