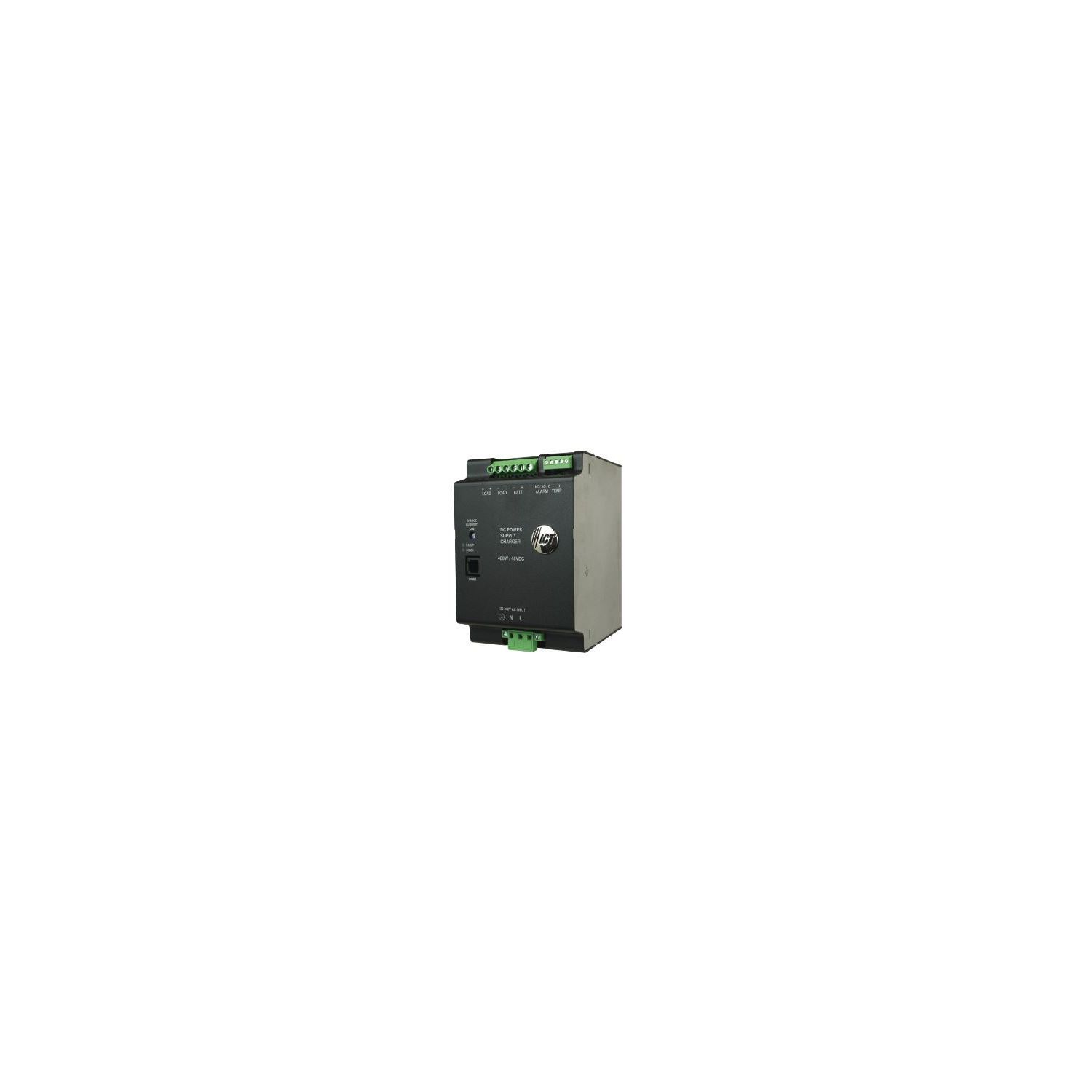

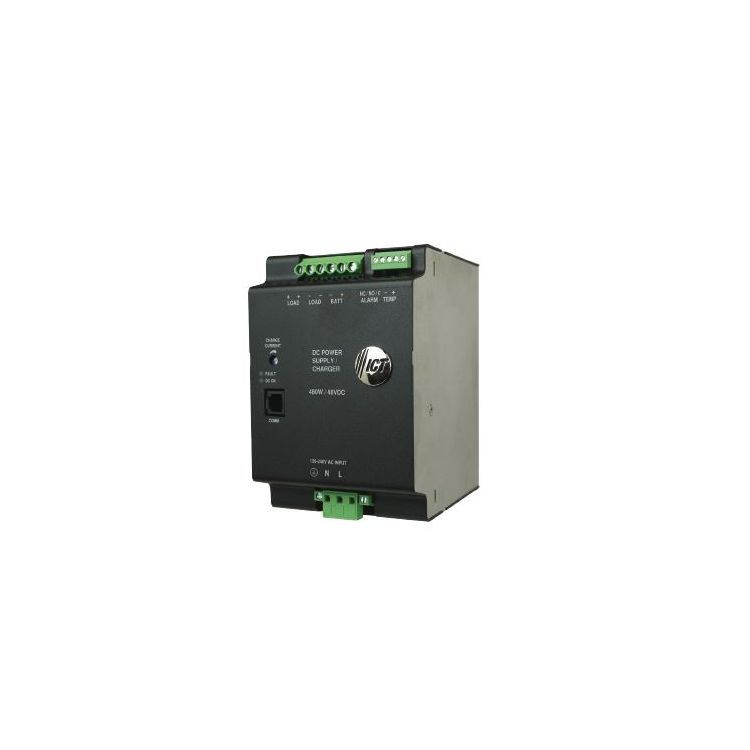

ICT480-48DIN DIN Rail Mount DC Power Supply; 48 V; 480 W

Part#: ICT480-48DIN

ICT480-48DIN

ICT480-48DIN

The DIN Series DC power supply unit with integrated battery charging and low
voltage disconnect provides 480 watts of 48- or 24-volt DC output. It features a
wide-ranging AC input, temperature-compensated charging, adjustable battery
charge current, and Form C alarm contacts. It is designed for DIN-rail mount
installations.

Manufacturer INNOVATIVE CIRCUIT TECH.

    Long Description

    The DIN Series intelligent power distribution unit is designed to distribute DC power to six individual
    outputs, each rated up to 12 amps continuous. The integrated Ethernet controller provides reporting
    of output current and status for each individual load, as well as the ability to remotely power cycle
    each output individually. It is designed for DIN-rail mount installations.

    The new 480-watt power supply unit, available in 24- and 48-volt models, expands on the existing
    360-watt power supply offering, providing an additional 33 per cent of power capacity for DC loads
    and battery charging. Paired with the intelligent DIN Series power distribution unit, the new 480-watt
    power supply will support lead-acid and lithium-ion battery chemistries; with battery state-of-charge
    monitoring; battery run-time remaining reporting; and battery discharge testing, allowing users to
    proactively test the health of their connected batteries.

    Specifications

    Input 108 - 264 VAC
    Weight 3.98 lb.
    By INNOVATIVE CIRCUIT TECH.
    Output 480 W
    Length 5.4 in
    Width 3.8 in
    Height 5.8 in
