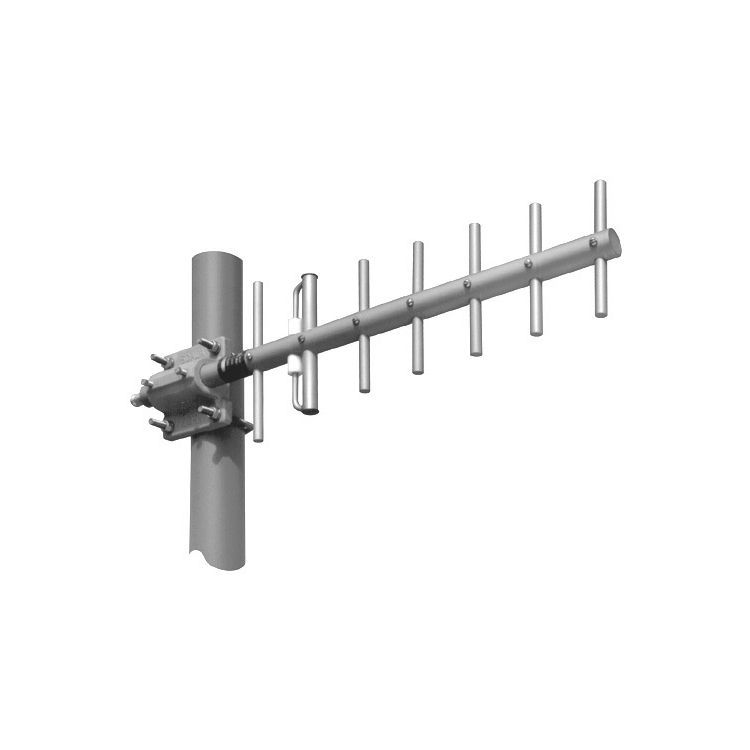

Kathrein Scala TY-900 7-element Yagi antenna (12.15 dBi), 890-960 MHz, N Female Connector

Kathrein Scala TY-900 7-element Yagi antenna (12.15 dBi), 890-960 MHz, N Female Connector

Part#: TY-900

Kathrein Scala TY-900 7-element Yagi antenna (12.15 dBi), 890-960 MHz, N Female Connector

Kathrein Scala TY-900 7-element Yagi antenna (12.15 dBi), 890-960 MHz, N Female Connector
Manufacturer KATHREIN

    Long Description

    The Scala TY-960 seven-element yagi antenna is intended for use in professional fixed-station applications in the 746-806 MHz band. It features: Balanced driven element for superior performance in icing conditions. Internal balun and dipole feedpoint sealed within the boom assembly. Heavy wall anodized aluminum pipe and tubing. Heavy cast aluminum and stainless steel hardware. Entire antenna at DC ground potential.

    Specifications

    Antenna Type Yagi
    Color Metal
    Weight 3 lb.
    Package Quantity 1
    By KATHREIN
    Power Rating 100W
    Frequency Range 890-960 MHz
    Finish Aluminum
    Band 700/800/900
    VSWR <1.5:1 maximum (1.35:1 typical)
    Wind Rating 150 mph
    Polarization Horizontal or Vertical
    Gain 12.15 dBi
    Mounting Pipe Diameter 1.25-2.375 in.
    Connector Type N-Female
    Operating Frequency Band 700/800/900
    Length 23 in.
    Width 6.8 in.
    TY-900.pdf
