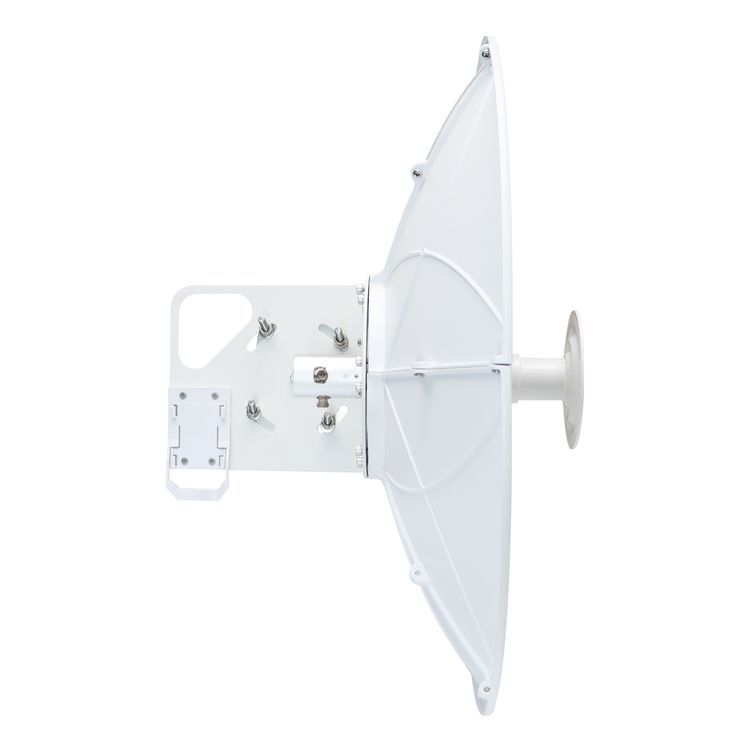

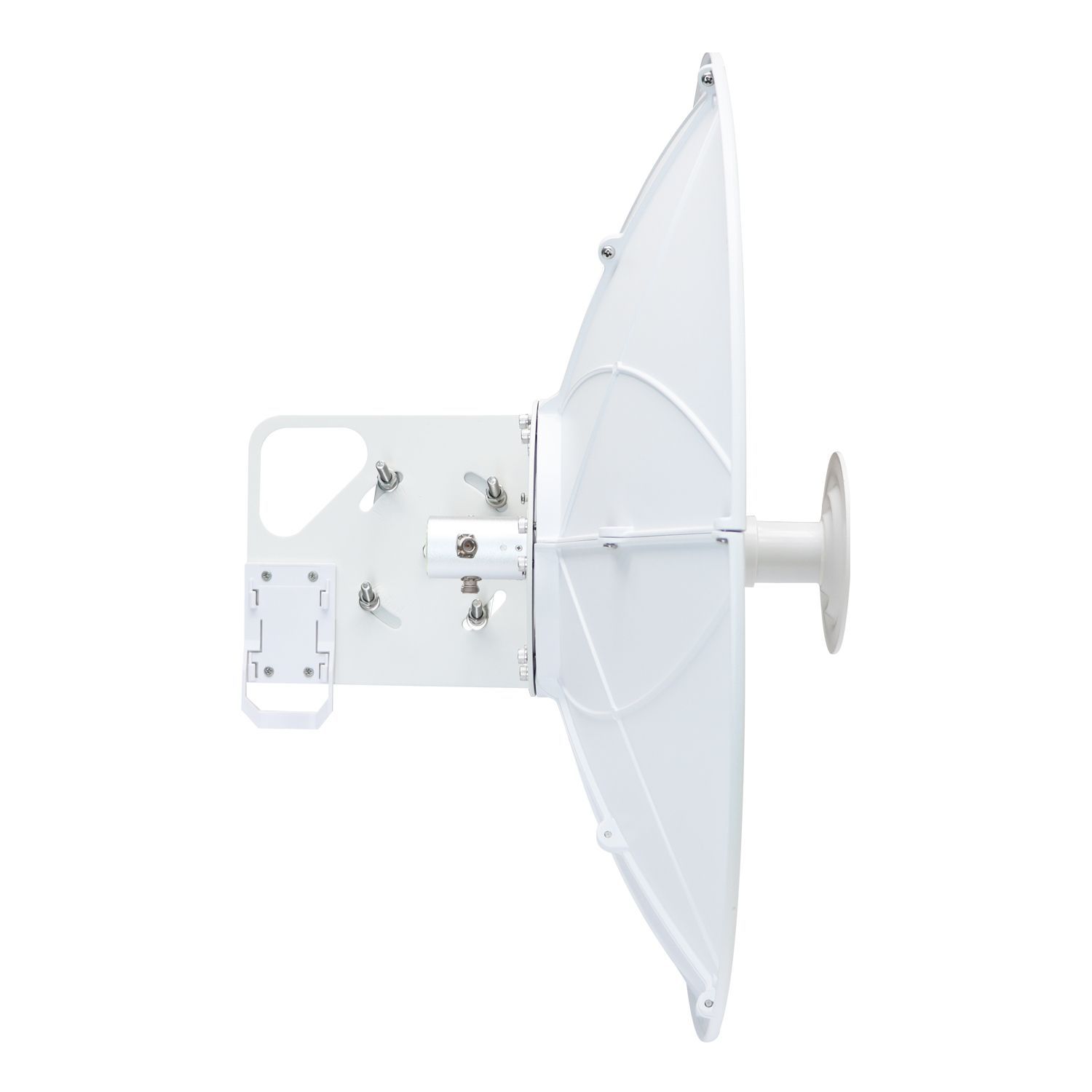

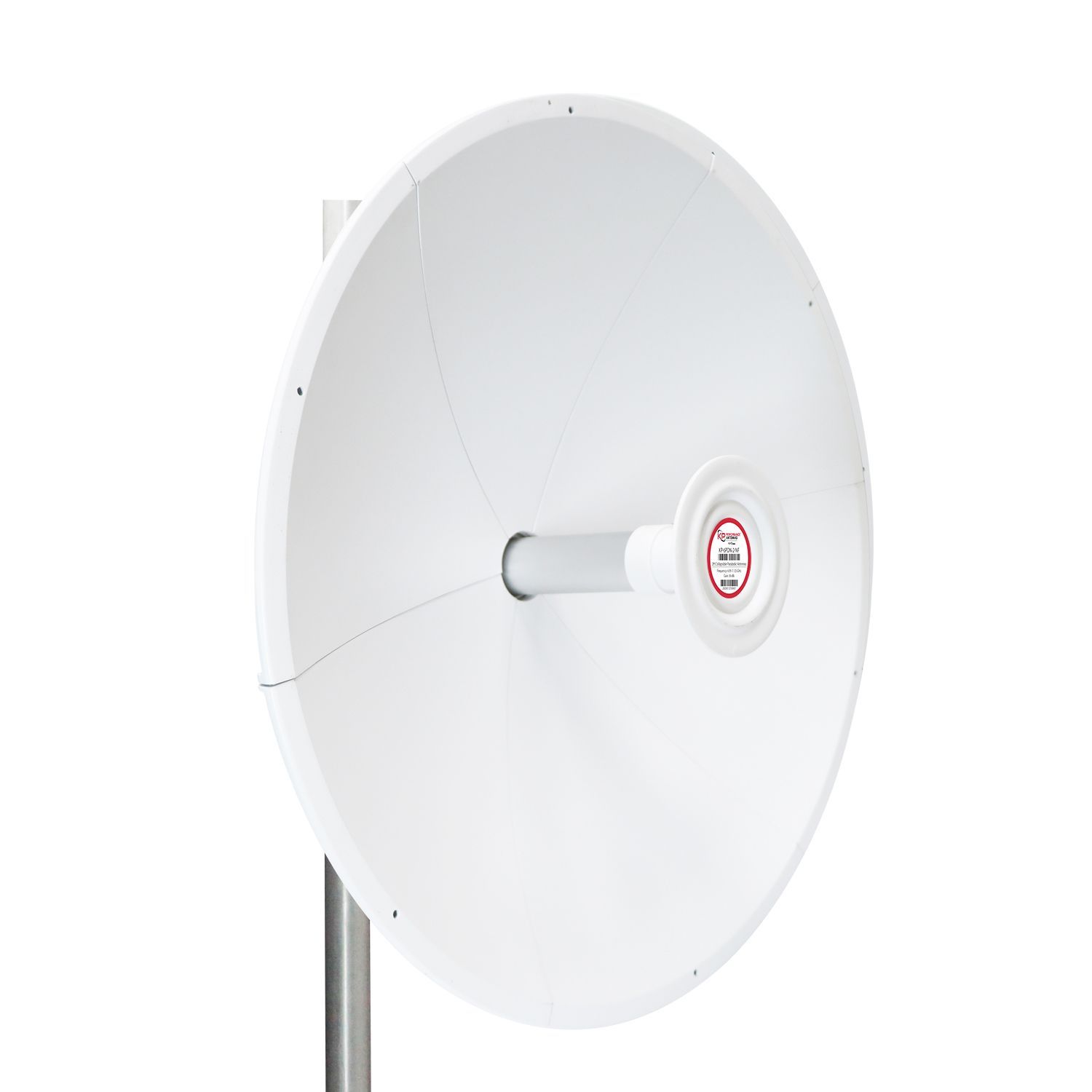

The KP Performance KP-6PDCN-2-NF collapsible parabolic antenna is for point to point communications that uses a parabolic reflector
to direct the waves to the receiver in its focal point. It has a frequency range of 4950 to 7125 MHz, providing stability over a wide
bandwidth to support gigabit transmissions and has operating temperature ranging from -40°C to 70°C (-32°F to 158°F). This antenna
has a 30 dBi high gain, which describes electrical power conversion capability.
The KP Performance KP-6PDCN-2-NF collapsible parabolic antenna has an N-Type Female connector capable of carrying microwave
frequencies used to join coaxial cables. This point to point antenna has a 50 Ohms impedance and is highly directional, which means it
receives greater power in a specific direction. This antenna features dual slant (V/H or ±45°) polarization, which makes them compatible
with any single or dual polarized 2 x 2 MIMO radio and eliminates the risk of link strength degradation due to polarization mismatch.
The KP Performance white collapsible parabolic antenna is of 2 feet size and has less than 2.5 VSWR (Voltage Standing Wave Ratio)
that results in the best power transfer and reduced losses. It has 50 W maximum power per port within which it has the ability to perform
without damage. This antenna has dc ground lighting protection to protect the system from damage due to lighting strikes.
This KP Performance KP-6PDCN-2-NF collapsible parabolic antenna, 4950 to 7125 MHz, 30 dBi is in stock and ready to ship sameday.
This high-performance 30 dBi wifi 6e antenna is ideal for 4.9/5.1/5.3/5.4/5.8/6 GHz ISM and UNII band, Wi-Fi 6e and Wi-Fi 7, and
long distance backhaul and point to point data link applications. Based on your specifications, our expert technical support and highly
trained sales team can find the ideal 4950 to 7125 MHz, 30 dBi collapsible parabolic antenna.
Features
• 2-Foot collapsible parabolic antenna
• 4950 to 7125 MHz, 30 dBi
• VSWR < 2.5:1
• All aluminum dish
Applications
• Long distance backhaul
• Point to point data links (PtP)
• Point to multi-point data links (PtMP)
• Wi-Fi 5, Wi-FI 6, Wi-Fi 6E and Wi-Fi 7
• Dual slant (V/H or ±45°)
• 50 W max input power per port
• 2 x N-Type female connectors
• DC ground
• Unlicensed 5GHz and 6GHz bands
• 5G bands - n46, n47, n96, n102, n104
• 2x2 MIMO capability
• High speed internet access
