KP-6PDN-2-NF

Part#: KP-6PDN-2-NF

KP-6PDN-2-NF

KP-6PDN-2-NF

4950 MHz to 7125 MHz, 2-foot Parabolic
Antenna, 2x2 MIMO, 30 dBi, N-Type (F), 2 Pack

Manufacturer ALIVE TELECOM

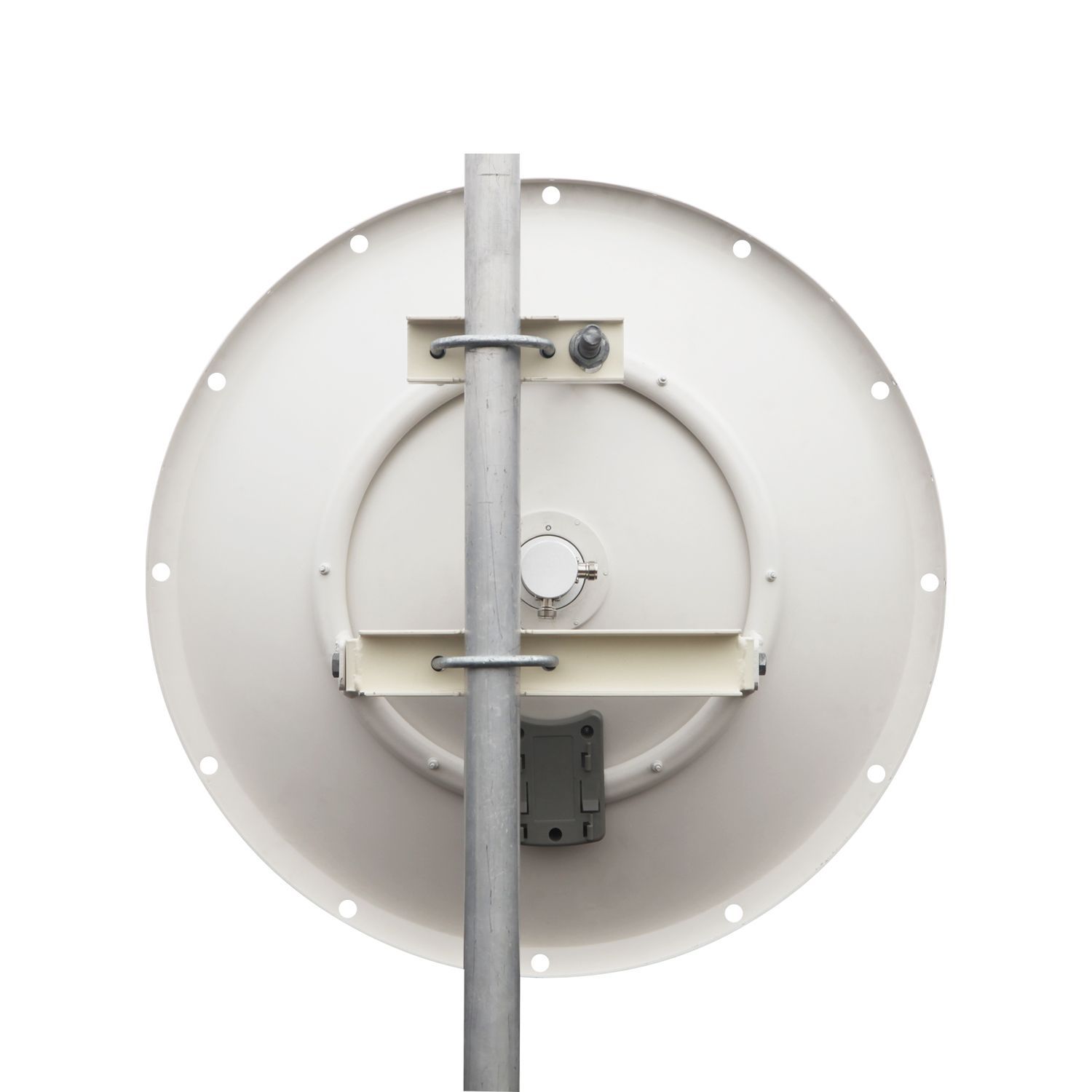

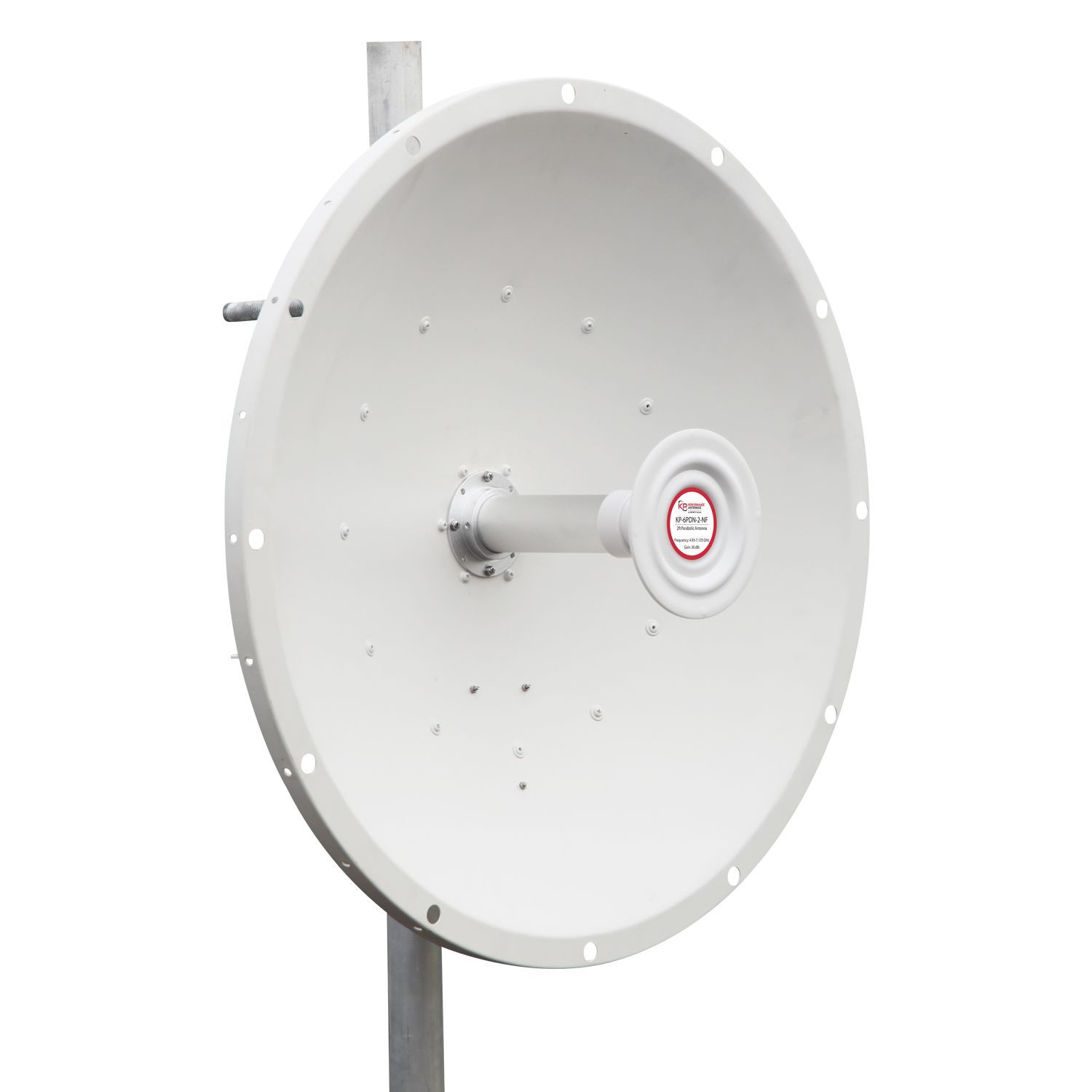

    The KP Performance KP-6PDN-2-NF parabolic antenna is for point to point communications that uses a parabolic reflector to direct the
    waves to the receiver in its focal point. It has a frequency range of 4950 to 7125 MHz, providing stability over a wide bandwidth to
    support gigabit transmissions and has operating temperature ranging from -40°C to 70°C (-32°F to 158°F). This antenna has a 30 dBi
    high gain, which describes electrical power conversion capability.


    The KP Performance KP-6PDN-2-NF parabolic antenna has an N-Type Female connector capable of carrying microwave frequencies
    used to join coaxial cables. This point to point antenna has a 50 Ohms impedance and is highly directional, which means it receives
    greater power in a specific direction. This antenna features dual slant (V/H or ±45°) polarization, which makes them compatible with
    any single or dual polarized 2 x 2 MIMO radio and eliminates the risk of link strength degradation due to polarization mismatch.

    The KP Performance white parabolic antenna is of 2 feet size and has less than 2.5 VSWR (Voltage Standing Wave Ratio) that results
    in the best power transfer and reduced losses. It has 50 W maximum power per port within which it has the ability to perform without
    damage. This antenna has dc ground lighting protection to protect the system from damage due to lighting strikes.

    This KP Performance KP-6PDN-2-NF parabolic antenna, 4950 to 7125 MHz, 30 dBi is in stock and ready to ship same-day. This highperformance
    30 dBi wifi 6e antenna is ideal for 4.9/5.1/5.3/5.4/5.8/6 GHz ISM and UNII band, Wi-Fi 6e and Wi-Fi 7, and long distance
    backhaul and point to point data link applications. Based on your specifications, our expert technical support and highly trained sales
    team can find the ideal 4950 to 7125 MHz, 30 dBi parabolic antenna.

    Features
    • 2-Foot standard parabolic antenna
    • 4950 to 7125 MHz, 30 dBi
    • VSWR < 2.5:1
    • All aluminum dish

    Applications
    • Long distance backhaul
    • Point to point data links (PtP)
    • Point to multi-point data links (PtMP)
    • Wi-Fi 5, Wi-FI 6, Wi-Fi 6E and Wi-Fi 7
    • Dual slant (V/H or ±45°)
    • 50 W max input power per port
    • 2 x N-Type female connectors
    • DC ground
    • Unlicensed 5GHz and 6GHz bands
    • 5G bands - n46, n47, n96, n102, n104
    • 2x2 MIMO capability
    • High speed internet access



    Specifications

    AntennaType Parabolic
    Weight 30.75 lb.
    Manufacturer ALIVE TELECOM
    PowerRating 50 W
    FrequencyRange 4950 to 7125 MHz
    Band MIMO
    Application MIMO
    VSWR <2.5:1
    Polarization H/V or 45 Deg. Slant
    Gain 29-31 dBi
    MountingPipeDiameter 1.1811 to 3.14961 in
    ConnectorType N Female
    RadomeMaterial Aluminum
    Material Aluminum
    Length 23.6 in
    Width 23.6 in
    Height 8 in
