LTXG1788 LTM Max

LTXG1788 LTM Max

Part#: LTXG1788-CJC-B-180

LTXG1788 LTM Max

LTXG1788 LTM Max

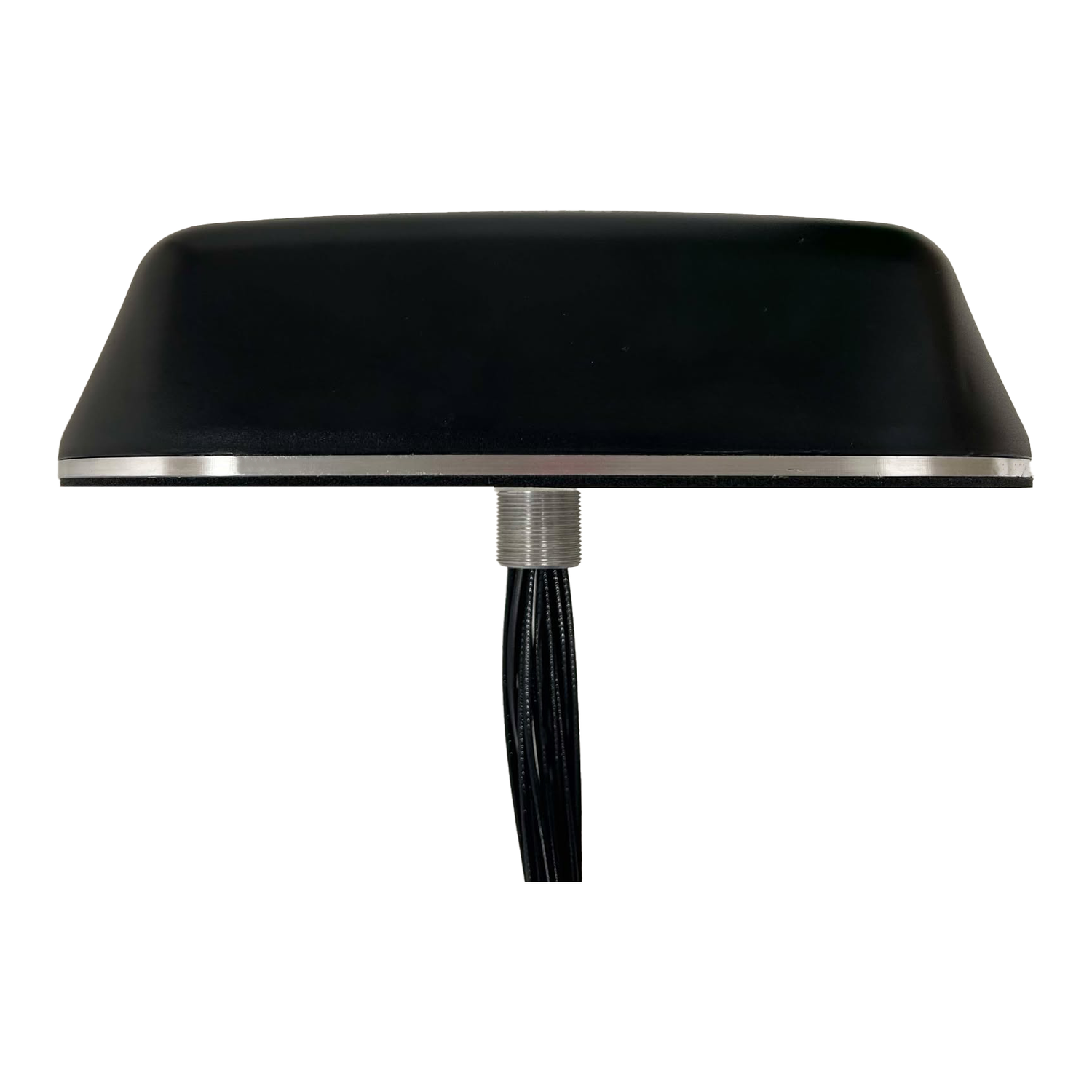

The Mobile Mark LTXG1788 is a high-capacity multiband antenna designed for advanced mobile routers, public transportation, fleet systems, and high-volume wireless data transfer. It combines multiple 5G/LTE, WiFi 6E/7, and GNSS elements in one compact radome to support multi-carrier MIMO connectivity across mobile and fixed wireless networks.

Manufacturer MOBILE MARK

    Long Description

    • 17-in-1 configurable antenna package for advanced wireless platforms��
    • Supports 2-carrier 4x4 MIMO, 4-carrier 2x2 MIMO, or single-carrier 8x8 MIMO deployments
    • Configurable with 0 to 8 WiFi 6E/7 elements depending on project requirements
    • Compact housing designed to be shorter than other 17-element antennas
    • Available in black or white radome options
    • Designed for fleet, public transportation, mobile networks, fixed-site networks, and high-speed data transfer
    • Optional configurations include tri-band GNSS and NFPA 130 passenger rail version

    Specifications

    Antenna Type Mobile
    Weight 5 lb.
    By MOBILE MARK
    Power Rating 10 Watts Max per Channel
    Application Fleet, Public Transportation, Mobile Networks, Fixed-Site Networks, High-Speed Data Transfer
    VSWR 5G/LTE: <2.5:1 ; WIFI 6E: <2.0:1
    Gain 5G/LTE - 2 dBi peak low band, 5 dBi peak high band. WIFI - 5 dBi peak
    Connector Type RG-316
    Operating Frequency Band 5G/LTE - 617 to 960 MHz, 1710 to 7200 MHz. WIFI - 2.4 to 2.5 GHz, 4.9 to 7.2 GHz.
    Radome Material UV-Stable ASA
    Width 5.5"
    Height 2.88"
    Depth 10.7"
    LTX1700-Series-Spec-Sheet.pdf
