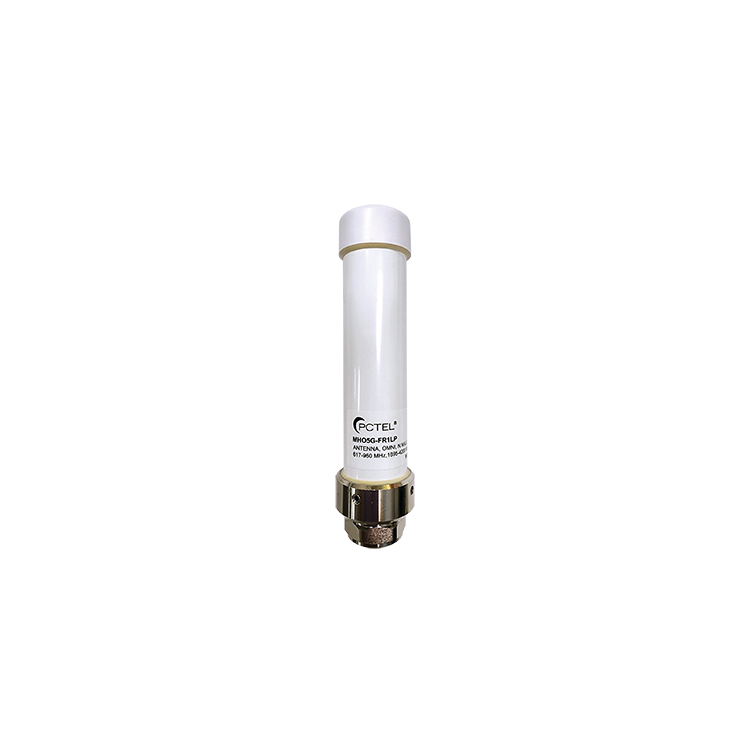

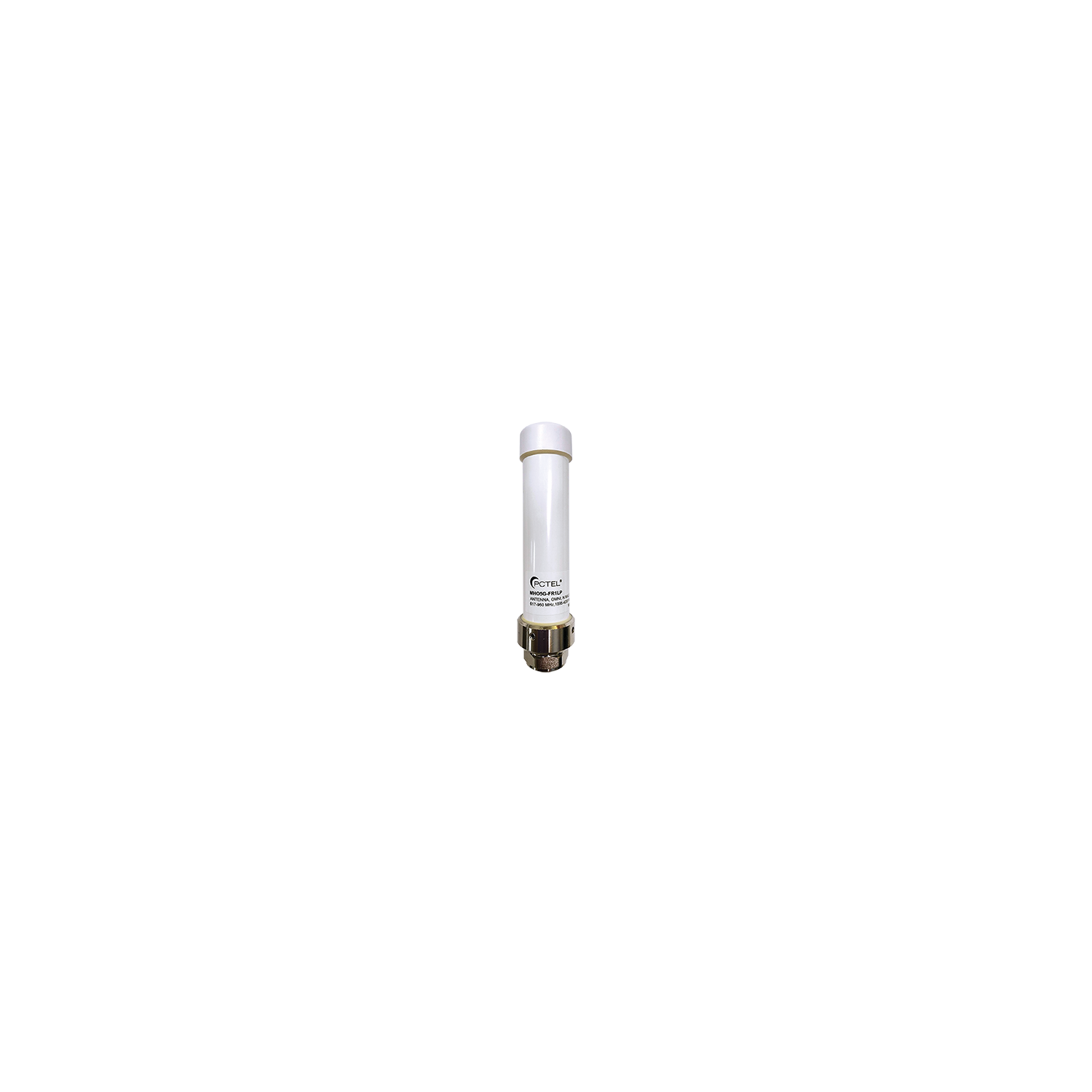

MHO5G-FR1LP Low Profile Monopole 5GFR1 Omnidirectional Antenna

Part#: MHO5G-FR1LP

MHO5G-FR1LP

MHO5G-FR1LP

Low Profile Monopole 5GFR1 Omnidirectional Antenna

Manufacturer PCTEL

    Long Description

    The MHO5G-FR1LP high-performance omnidirectional antenna series is designed to cover
    frequencies from 617-960 MHz, 1695-4200 MHz for broadband access applications. With its
    integral N Male connector option at the base, this antenna can be directly mounted on the
    radio equipment.

    Features
    • Slender, rugged housing (1″ OD)
    • Innovative sealed version for harsh environments
    • White UV-resistant radome; protects the antenna elements from environmental factors

    Specifications

    Antenna Type Omni
    Weight 0.17 lb.
    By PCTEL
    Frequency Range 617-4200
    Diameter 1 in
    Application 5G Cellular
    VSWR 2.5-3.0
    Wind Rating 125 mph
    Polarization vertical, linear
    Gain 0.6-6.0 dBi
    Connector Type N Male
    Height 4.5 in
