PCTMI245871-RPC

Part#: PCTMI245871-RPC

PCTMI245871-RPC

PCTMI245871-RPC

TRI-BAND DIRECT MOUNT STUBBY OMNIDIRECTIONAL ANTENNA WITH RPTNC CONNECTOR

Manufacturer PCTEL

    Long Description

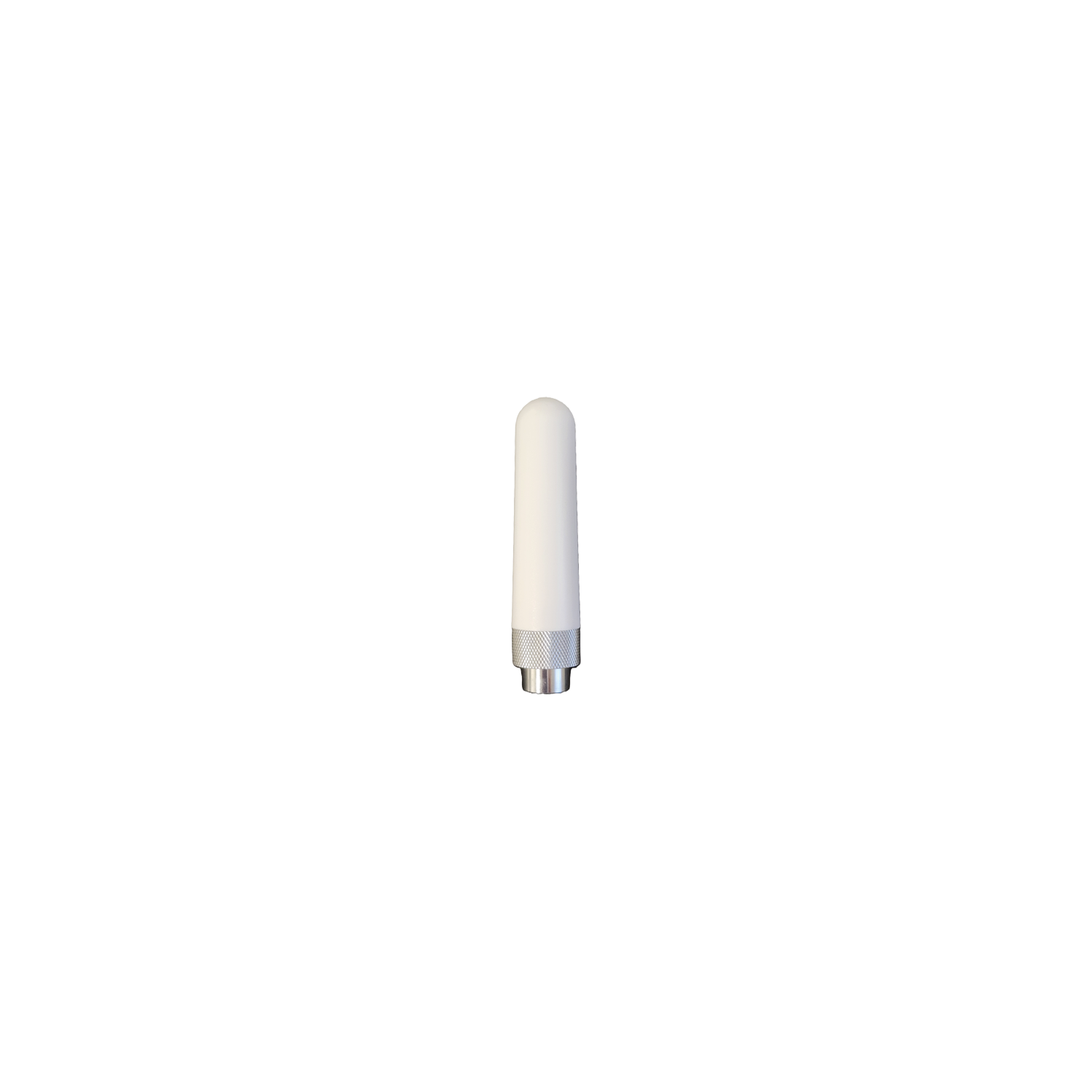

    The PCTMI245871-RPC is a low-profile antenna that is optimized for operation with reverse polarity TNC
    compatible access points operating over all the Wi-Fi frequency bands. The antenna covers all the 2.4 GHz,
    5 GHz and 6 GHz frequency bands. The rugged, UV resistant housing makes it suitable for use in a wide variety of IIoT applications, including office LAN environments, factory floors and outdoor Wi-Fi venues.

    Specifications

    Antenna Type Omnidirectional
    Weight 1 lb.
    By PCTEL
    Is Featured True
    Band Tri-Band
    Application Office LAN Environments, Factory floors, Indoor or Outdoor Wifi Networks, and more
    VSWR < 2.0 : 1
    Polarization Vertical
    Gain 1 - 4 dBi
    Connector Type Male RP-TNC
    Width .78"
    Height 3.3"
    Depth .78"
