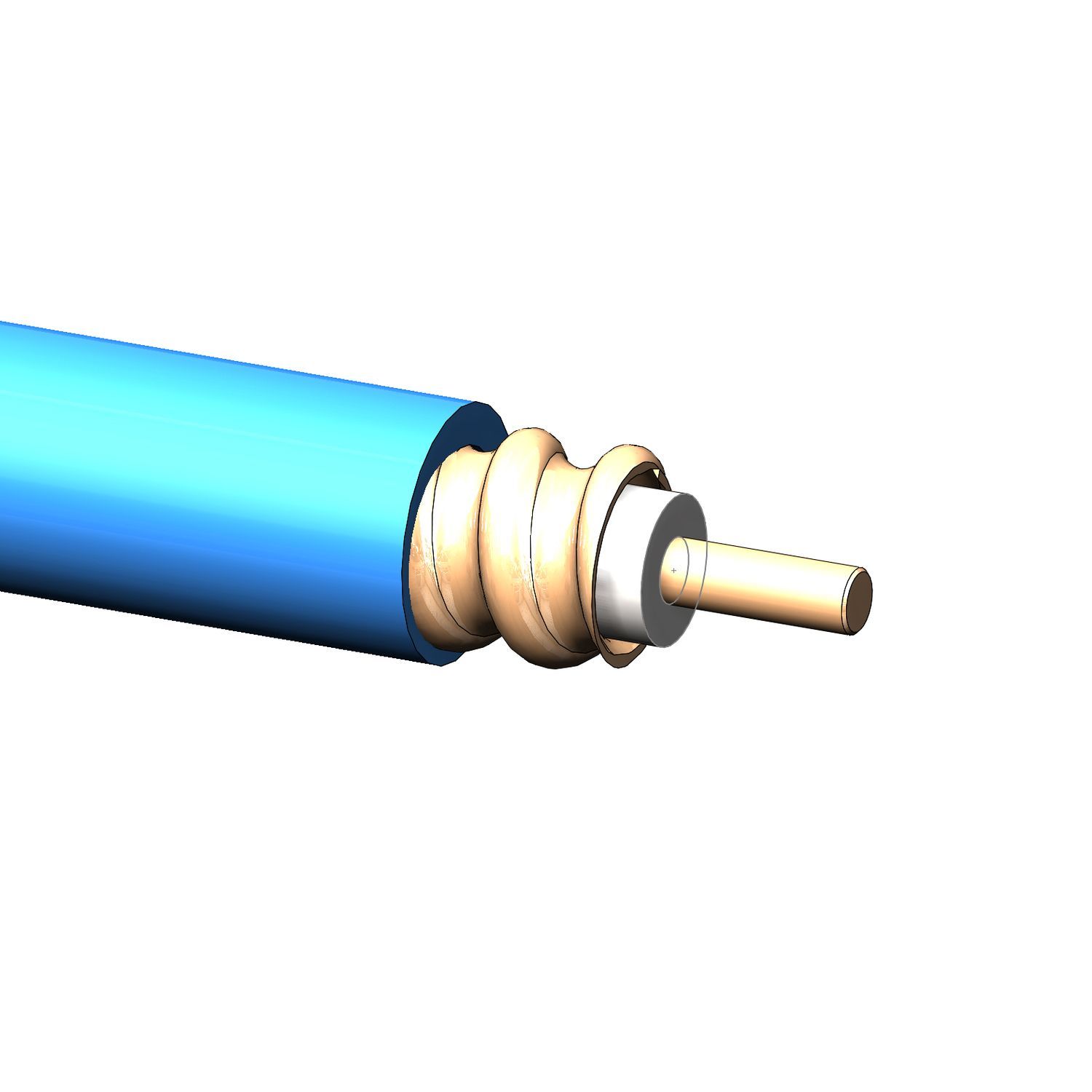

1/4" CELLFLEX® Superflexible Plenum-Rated Foam-Dielectric Coaxial Cable for In-Building Applications

Home > In-Building Solutions > Indoor Cable > SCF14-50JPL

Zoom In Zoom Out Enlarge

Part#: SCF14-50JPL

COAX CABLE, 1/4IN CLEAR FILL LINE PLENUM-RATED FOAM DIELECTRIC SUPERFLEXIBLE CABLE FOR IN-BUILDING APPLICATIONS JACKET COLOUR: BLUE

Compression Guide available in Documents Tab or at https://amphenol-antennas.com/solutions/compression-connector-matrix/

Manufacturer	RFS-Amphenol

Qty

FEATURES / BENEFITS

Low Attenuation
The low attenuation of CELLFLEX^® coaxial cable results in highly efficient signal transferin your RF system.
Complete Shielding
The solid outer conductor of CELLFLEX^® coaxial cable creates a continuous RFI/EMI shield that minimizes system interference.
Low VSWR
Special low VSWR versions of CELLFLEX^® coaxial cables contribute to low system noise.
Outstanding Intermodulation Performance
CELLFLEX^® coaxial cable's solid inner and outer conductors virtually eliminate intermods. Intermodulation performance is also confirmed with state-of-the-art equipment at the RFS Technologies factory.
High Power Rating
Due to their low attenuation, outstanding heat transfer properties and temperature stabilized dielectric
materials, CELLFLEX^® cable provides safe long term operating life at high transmit power levels.
Wide Range of Application
Typical areas of application are: feedlines for broadcast and terrestrial microwave antennas, wireless cellular, PCS and ESMR base stations, cabling of antenna arrays, and radio equipment interconnects.
Meets or Exceeds: IEC 60754-1, -2; IEC 60332-1-1, -2;IEC 61034-1, -2; IEC 60332-3-24 (formerly IEC 60332-3-C)
ETL Certified and Listed to UL444, NEC 820-53 (a) CMP, NFPA-262, Canadian CSA C.22.2/FT6

Weight	2 lb.
By	RFS-Amphenol
