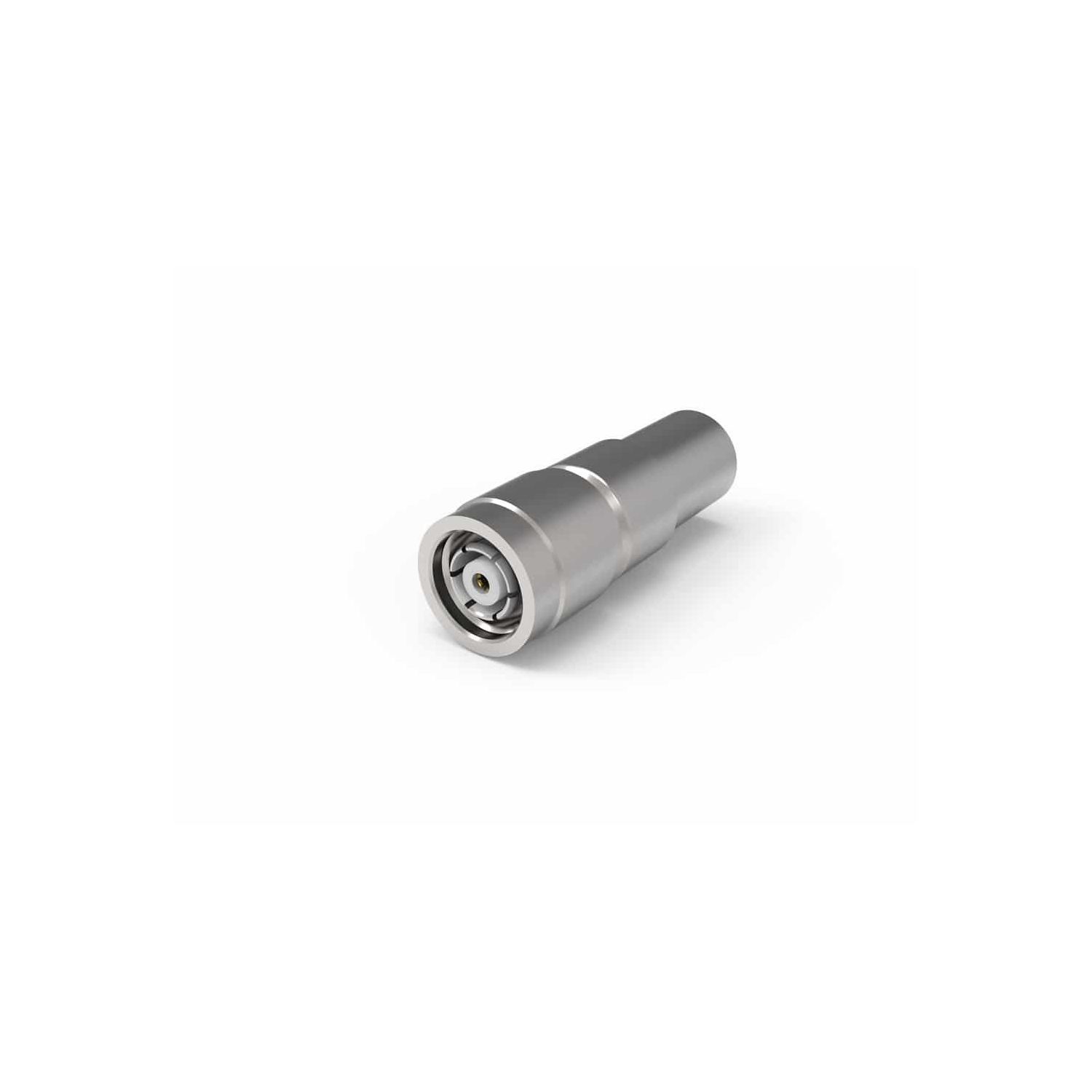

TC-400-TM-RP - TNC Male (straight)

Part#: TC-400-TM-RP

TC-400-TM-RP - TNC Male (straight)

TC-400-TM-RP - TNC Male (straight)

TNC male (plug) straight TC connector for LMR®-400, TCOM®-400, T-RAD®-400-FR, and FBT-400 type cables.

Manufacturer TIMES MICROWAVE

    Long Description

    The TC-400-TM-RP features a solder-pin connector and is a perfect option for stranded center conductors. The TNC is a miniature, threaded, weatherproof connector with a contact design similar to a BNC series and a higher frequency performance. This is a male (plug), reverse polarity connector for 400-size cables.

    Specifications

    Outer Contact Attach Crimp
    Interface TNC
    Max Frequency 2.5 (GHZ)
    Weight 0.074 lb.
    By TIMES MICROWAVE
    Inner Contact Attach Solder
    Impedance 50 (ohms)
    Coupling Nut Knurl
    Finish Body Finish Nickel - Pin Finish Gold
    Angle Straight
    VSWR VSWR Freq<1.25:1 - VSWR Frequency (GHz)2.5
    Connector Type Male (plug)
    Length 1.7 in
    Width 0.59 in
