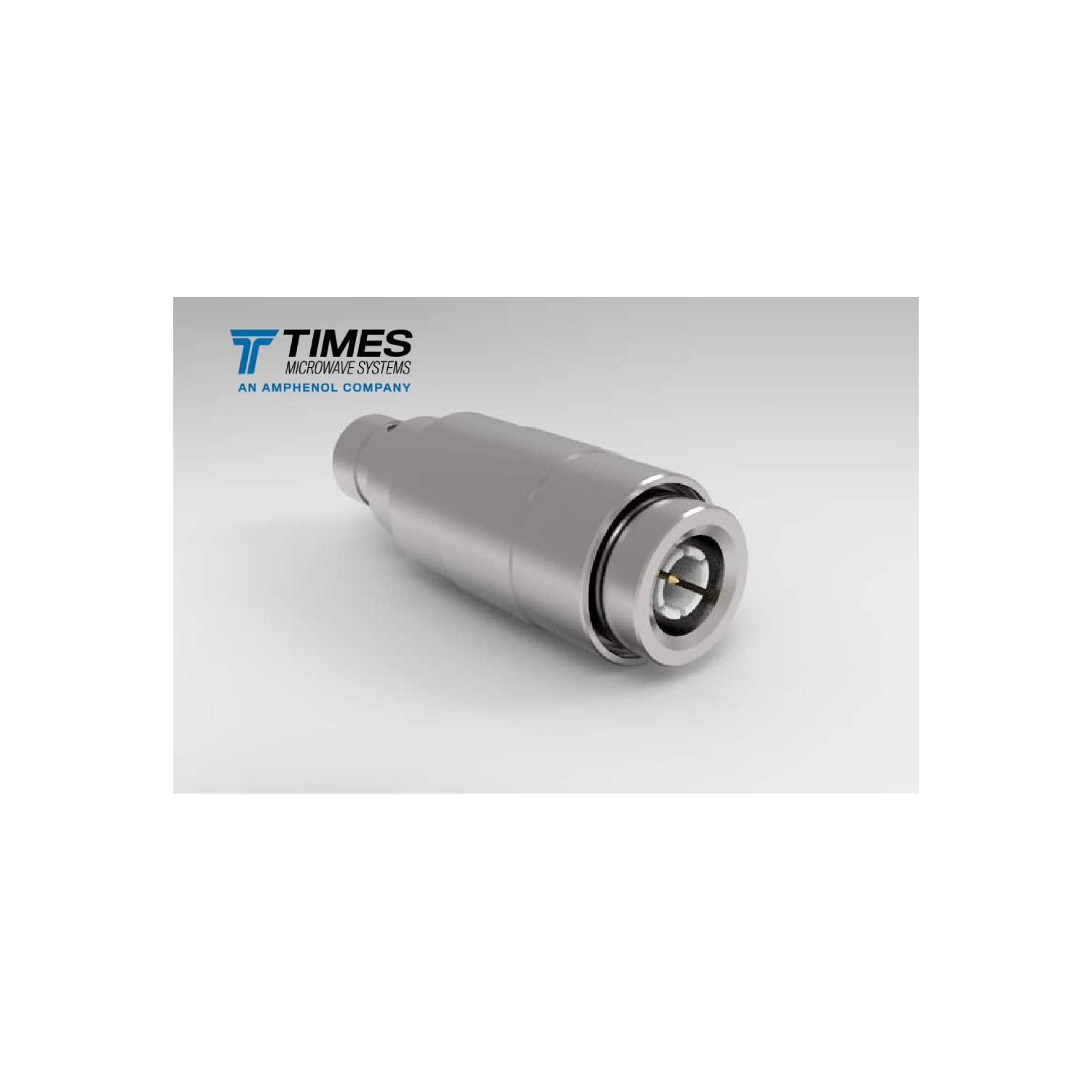

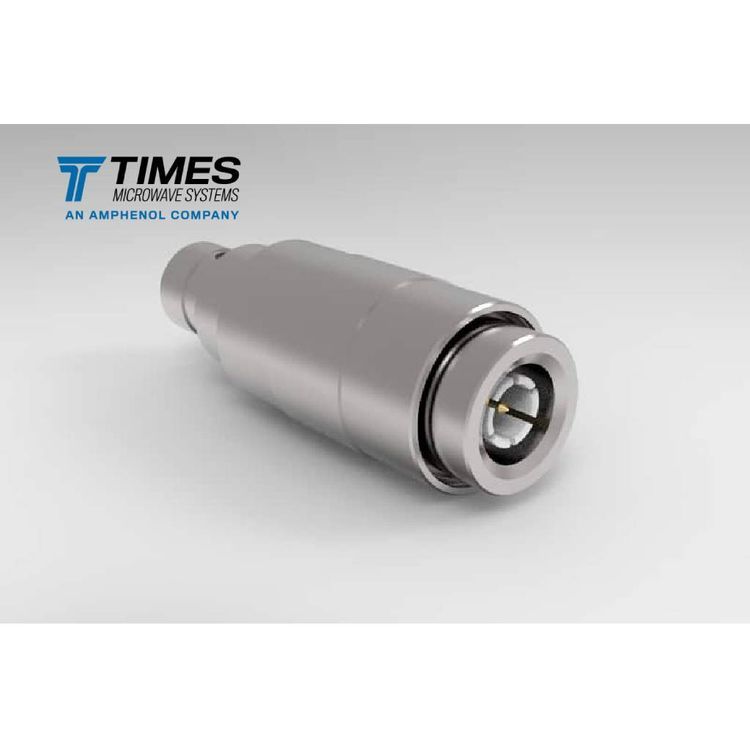

TC-402-1023M-LP - Type 1.0/2.3, male (plug), straight, TC style connector for TFT-402 type cables.

Home > Connectors > Braided Connectors > TC-402-1023M-LP - Type 1.0/2.3, male (plug), straight, TC style connector for TFT-402 type cables.
TC-402-1023M-LP - Type 1.0/2.3, male (plug), straight, TC style connector for TFT-402 type cables.

TC-402-1023M-LP - Type 1.0/2.3, male (plug), straight, TC style connector for TFT-402 type cables.

Part#: TC-402-1023M-LP

TC-402-1023M-LP - Type 1.0/2.3, male (plug), straight, TC style connector for TFT-402 type cables.

TC-402-1023M-LP - Type 1.0/2.3, male (plug), straight, TC style connector for TFT-402 type cables.

Type 1.0/2.3, male (plug), straight, TC style connector for TFT-402 type cables.

Manufacturer TIMES MICROWAVE

    Specifications

    OuterContactAttach Solder
    Interface 1.0/2.3
    Weight 0.01 lb.
    Manufacturer TIMES MICROWAVE
    InnerContactAttach Solder
    Impedance 50
    CouplingNut Knurl
    Finish Body Finish - Alballoy Pin Finish - Silver
    Angle Straight
    VSWR VSWR Freq <1.3:1 VSWR Frequency - (GHz) 6
    ConnectorType Male (plug)
    Length .94 in
    Width .33 in
