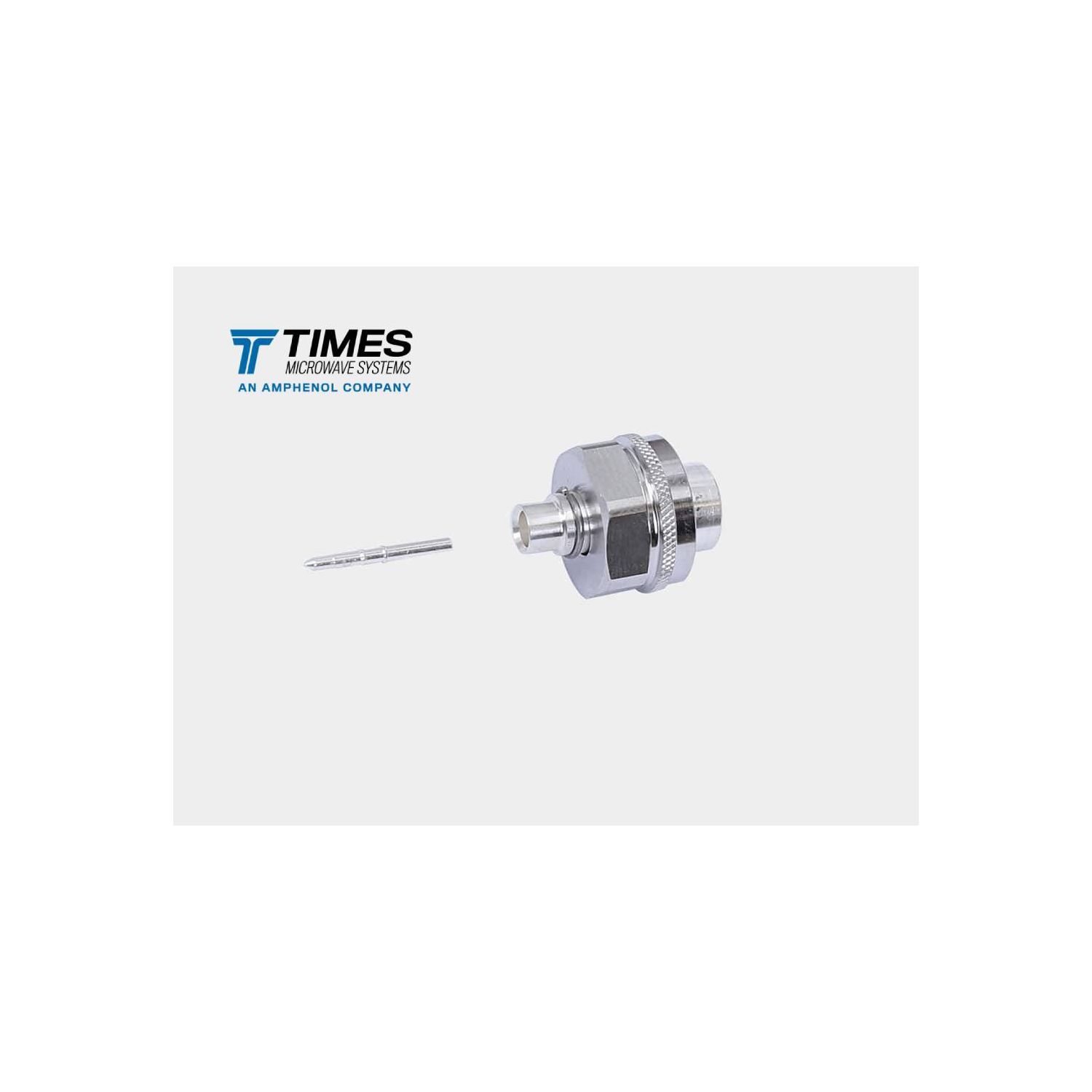

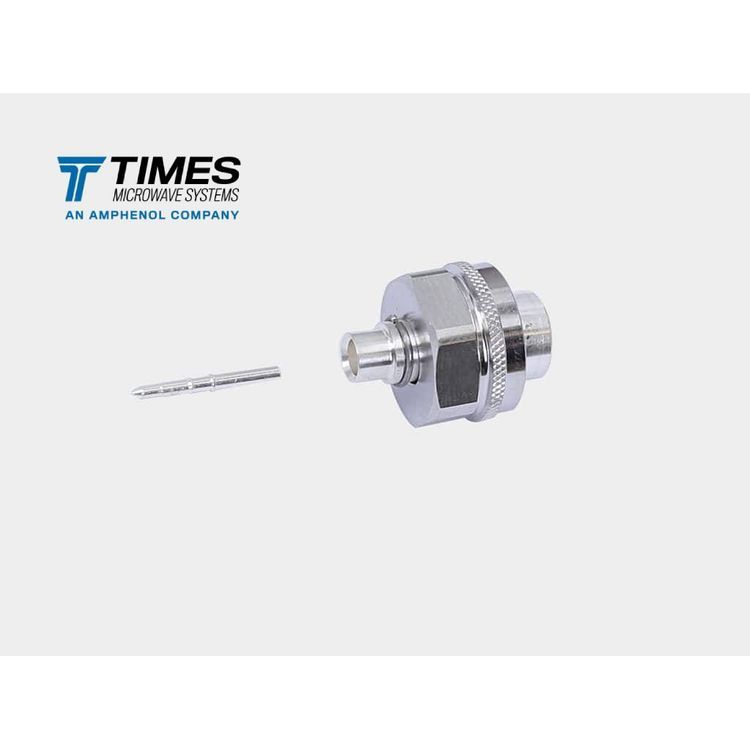

TC-402-225M-LP - Type 2.2/5, male (plug), straight, TC style connector for TFT-402 type cables.

Home > Connectors > Braided Connectors > TC-402-225M-LP - Type 2.2/5, male (plug), straight, TC style connector for TFT-402 type cables.
TC-402-225M-LP - Type 2.2/5, male (plug), straight, TC style connector for TFT-402 type cables.

TC-402-225M-LP - Type 2.2/5, male (plug), straight, TC style connector for TFT-402 type cables.

Part#: TC-402-225M-LP

TC-402-225M-LP - Type 2.2/5, male (plug), straight, TC style connector for TFT-402 type cables.

TC-402-225M-LP - Type 2.2/5, male (plug), straight, TC style connector for TFT-402 type cables.

Type 2.2/5, male (plug), straight, TC style connector for TFT-402 type cables.

Manufacturer TIMES MICROWAVE

    Specifications

    OuterContactAttach Solder
    Interface 2.2/5
    Weight 0.024 lb.
    Manufacturer TIMES MICROWAVE
    InnerContactAttach Solder
    Impedance 50
    CouplingNut Hex
    Finish Body FinishSilver Pin FinishSilver
    Angle Straight
    VSWR VSWR Freq <1.3:1 VSWR Frequency (GHz) 6
    ConnectorType Male (plug)
    Length .85 in
    Width .67 in
