TCP-401-4310MC-LP - 4.3/10.0-male (plug), field install, crimp pin

Home > Connectors > TCP-401-4310MC-LP - 4.3/10.0-male (plug), field install, crimp pin
TCP-401-4310MC-LP - 4.3/10.0-male (plug), field install, crimp pin

TCP-401-4310MC-LP - 4.3/10.0-male (plug), field install, crimp pin

Part#: TCP-401-4310MC-LP

TCP-401-4310MC-LP - 4.3/10.0-male (plug), field install, crimp pin

TCP-401-4310MC-LP - 4.3/10.0-male (plug), field install, crimp pin

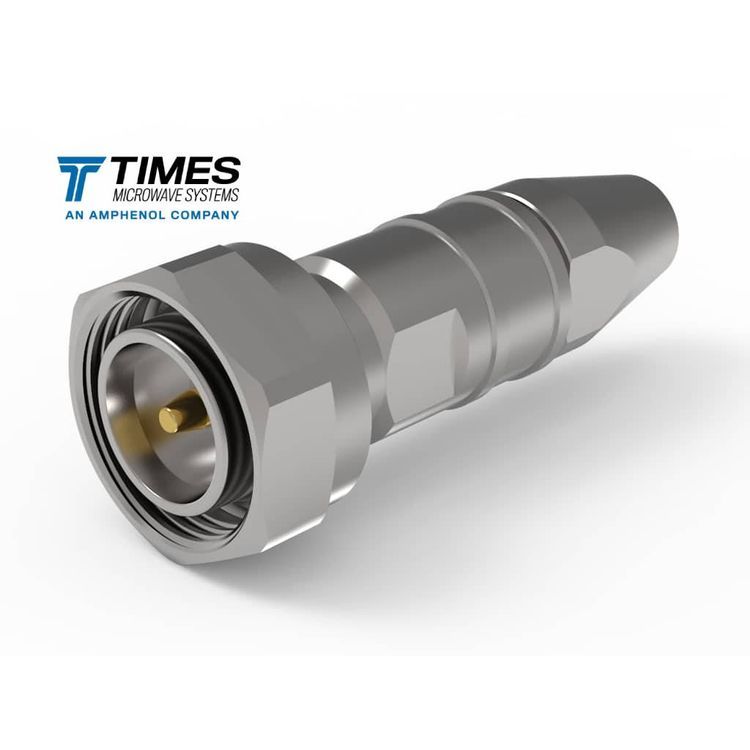

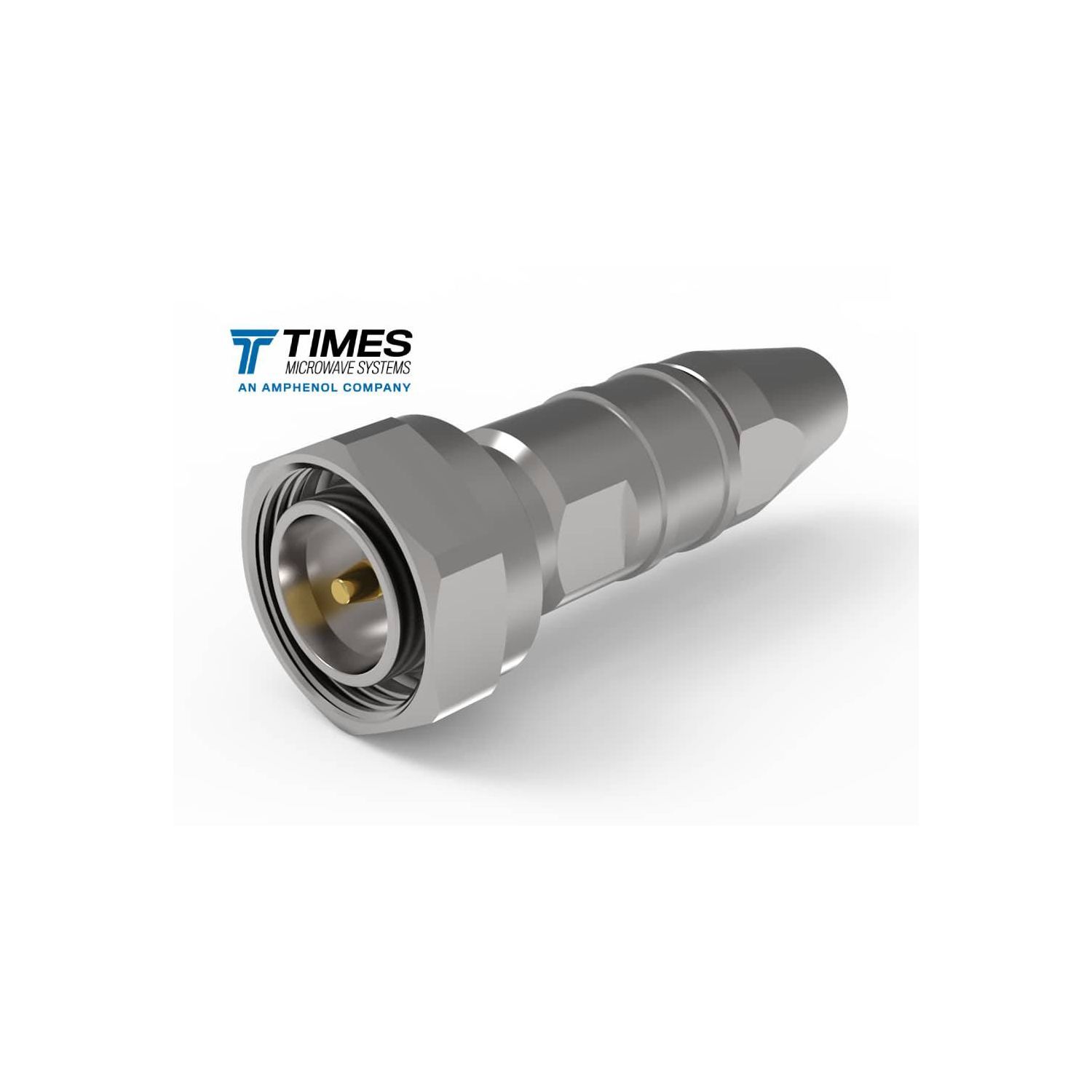

Type 4.3/10 mini DIN, male (plug), straight, TCP style connector for TFT-401 type cables.

Manufacturer TIMES MICROWAVE

    Specifications

    OuterContactAttach Clamp
    Interface 4.3/10 mini DIN
    Weight 0.11 lb.
    Manufacturer TIMES MICROWAVE
    InnerContactAttach Solder/Crimp
    Impedance 50
    CouplingNut Hex
    Finish Body Finish - Alballoy Pin Finish-Silver
    Angle Straight
    VSWR VSWR Freq <1.3:1 VSWR Frequency (GHz) 6
    ConnectorType Male (plug)
    Length 2.36 in
    Width 0.96 in
