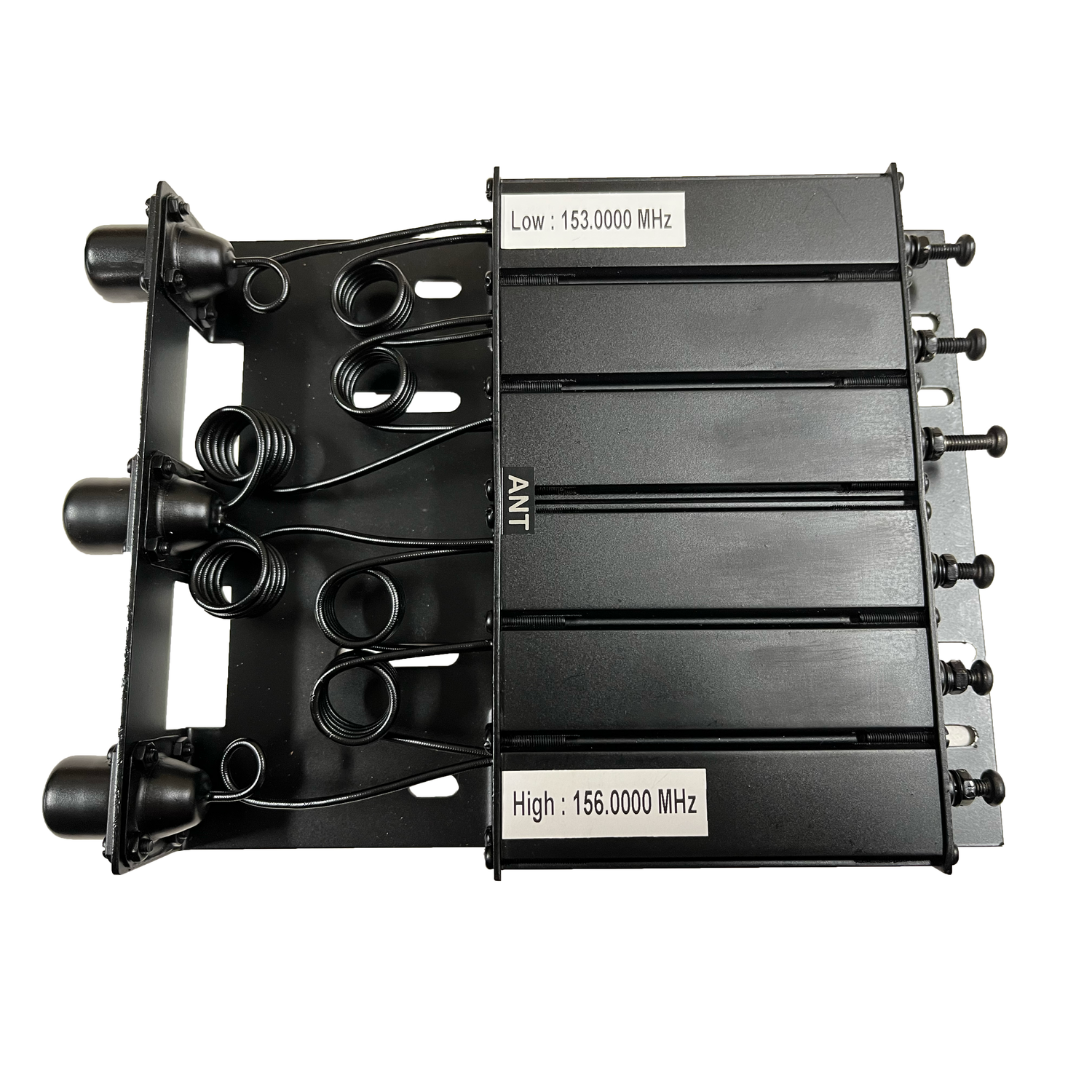

Telewave.io's TMND3-1516 Compact Duplexer provides high performance while using minimal space. The rugged duplexer excels in portable, mobile, or base applications.
The duplexer can be mounted inside any repeater chassis with a space that has at least 6.4” wide x 9.0” deep x 3.0” tall. Best to have the connectors pointed toward the back of the chassis.
Each duplexer consists of six High “Q” reject helical resonators (3 per side). Field tuning can be performed with easily accessible tuning elements opposite side of the connectors. The duplexer is not recommended for fixed sites with other VHF radios that have antennas or frequencies near those associated with this duplexer.
